Manual Guide i Operators manual Page 173

Operators manual
B-63874EN/05 OPERATION 6.OPERATIONS IN THE MEM MODE
- 151 -
6.6 PRESETTING RELATIVE COORDINATES

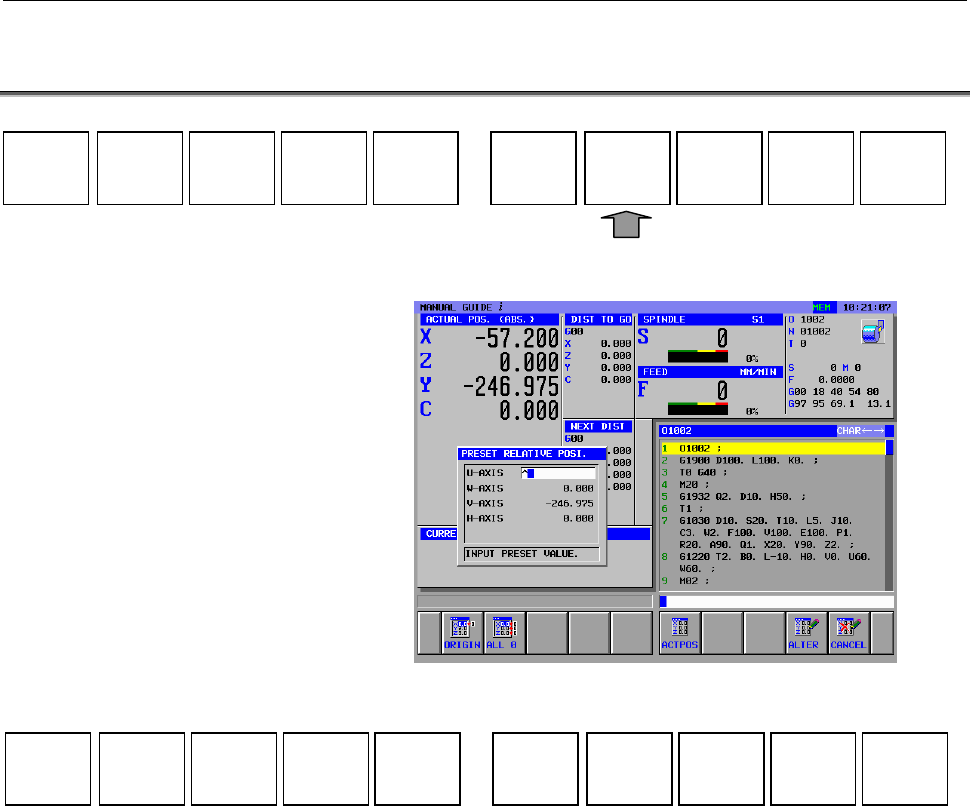

By pressing [PRESET], a relative coordinates presetting window
appears, allowing you to preset relative coordinates.
When the relative coordinates presetting window is displayed, the
following soft keys are displayed:
[ORIGIN] : Set the axis selected with the cursor keys to "0." At this
time, no relative coordinates are preset.
[ALL 0] : Set all axes to "0." At this time, no relative coordinates
are preset.
Remark) You can set a desired coordinate value for an axis
selected by the cursor by entering the value you want
to preset by using numeric keys then pressing the
INPUT key. At this time, as described above, the
relative coordinates are not yet preset.
[ACTPOS] : Change the current position display in the status display
window in the upper part of the screen in the sequence
"ACTUAL POS. (ABS)" → "ACTUAL POS.
(RELATIVE)" → "ACTUAL POS. (MACHINE)."
If the manual handle interrupt option function is
attached, the position display changes in the sequence
"ACTUAL POS. (ABS)" → "ACTUAL POS.
(RELATIVE)" → "ACTUAL POS. (MACHINE)" →
“HANDLE INTER.(INPUT)” → “HANDLE
INTER.(OUTPUT)”
CANCEL
ALTER
ACTPOS
ALL 0
ORIGIN
SIMLAT
MCHDRW
MESLST
PRESET
ACTPOS
O SRCH
BGEDIT
N SRCH O LIST
REWIND
