Manual Guide i Operators manual Page 809

Operators manual

Page of 888

/ 888

B-63874EN/05 APPENDIX A.PARAMETERS

- 787 -

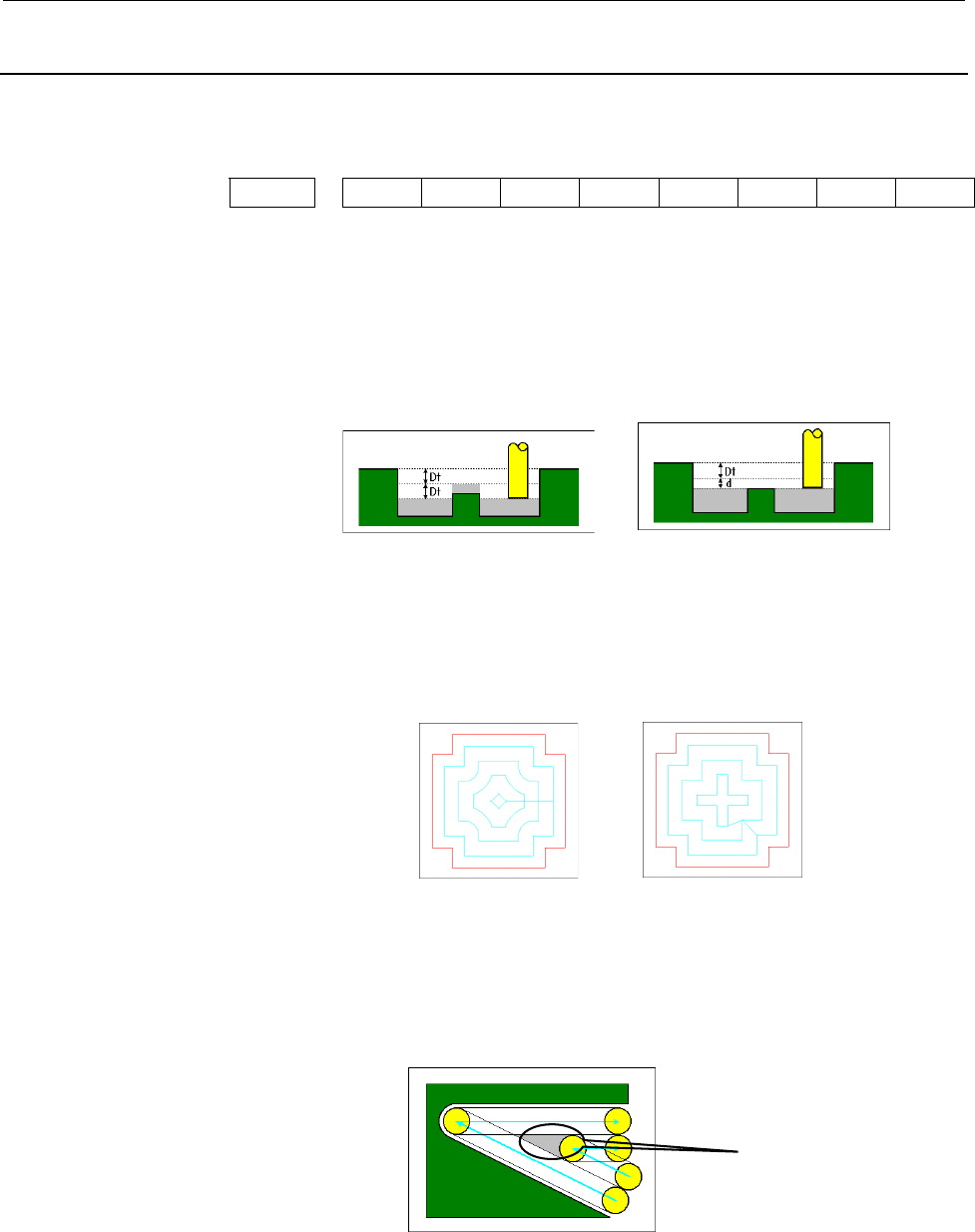

A.3.4 Parameters for Pocketing Cycles

These parameters are for the settings for pocketing cycles.

#7 #6 #5 #4 #3 #2 #1 #0

27060 PR7 PR6 PR5 PR4 PR3 PR2 PR2 PR0

PR0 0 : Machining starts on the inside during roughing and bottom finishing.

1 : Machining starts on the outside during roughing and bottom finishing.

PR1 0 : The top of an island is not machined during roughing and bottom

finishing.

1 : Machining is performed by controlling the depth of cut during

roughing and bottom finishing.

PR2 0 : Method of interpolation during roughing and bottom finishing

(interpolation of elements with arcs).

1 : Method of interpolation during roughing and bottom finishing

(interpolation of elements by extending them).

PR3 0 : Method of machining portions left uncut during roughing and bottom

finishing (no machining of portions left uncut).

1 : Method of machining portions left uncut during roughing and bottom

finishing (machining of portions left uncut).

PR1 = 0

PR1 = 1

PR2 = 0

PR2 = 1

UNCUT
