8. CRT CHARACTER DISPLAY

B–61863E–1/06

PMC LIBRARY

224

SC/SC3/SC4 NB/NB2 16i/18i/21i 15i–A

f  f 

[Name]

pl_dspopen2

[Description]

Initializes the 14′′ CRT screen having 27 rows 74 columns.

The key-in line display position is line 22.

[Format]

ret = pl_dspopen2( ) ;

short ret ;

[Input]

______

[Output]

______

[Returns]

ret Completion code : –1, 0, or 3

–1 : Other than PMCMDI screen

0 : Normal termination

3 : This function has been issued for the 9′′ CRT screen.

[Remarks]

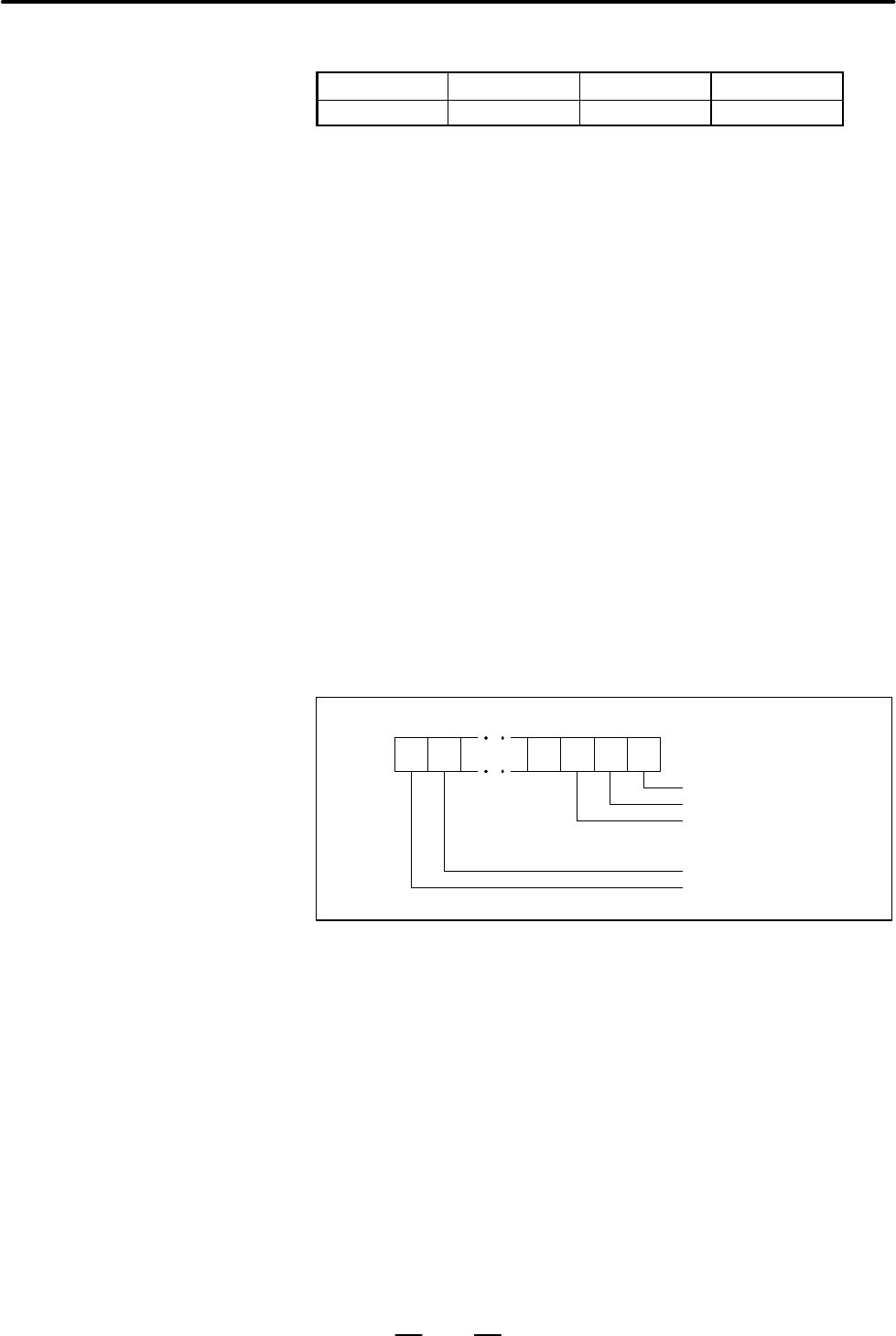

When this function is executed, initialization bit of R9072 must be

turned on before character is displayed.

Initialization flag must be set for each task which displays character.

15 14 3 2 1 0

TASK–ID 10 Initialization flag

TASK–ID 11 Initialization flag

TASK–ID 12 Initialization flag

TASK–ID 24 Initialization flag

TASK–ID 25 Initialization flag

R9072

8.12

INITIALIZING THE 14′′

CRT SCREEN

(CHARACTER

DISPLAY) HAVING 27

ROWS 74

COLUMNS
