2. TASK CONTROL FUNCTION

B–61863E–1/06

PMC CONTROL SOFTWARE

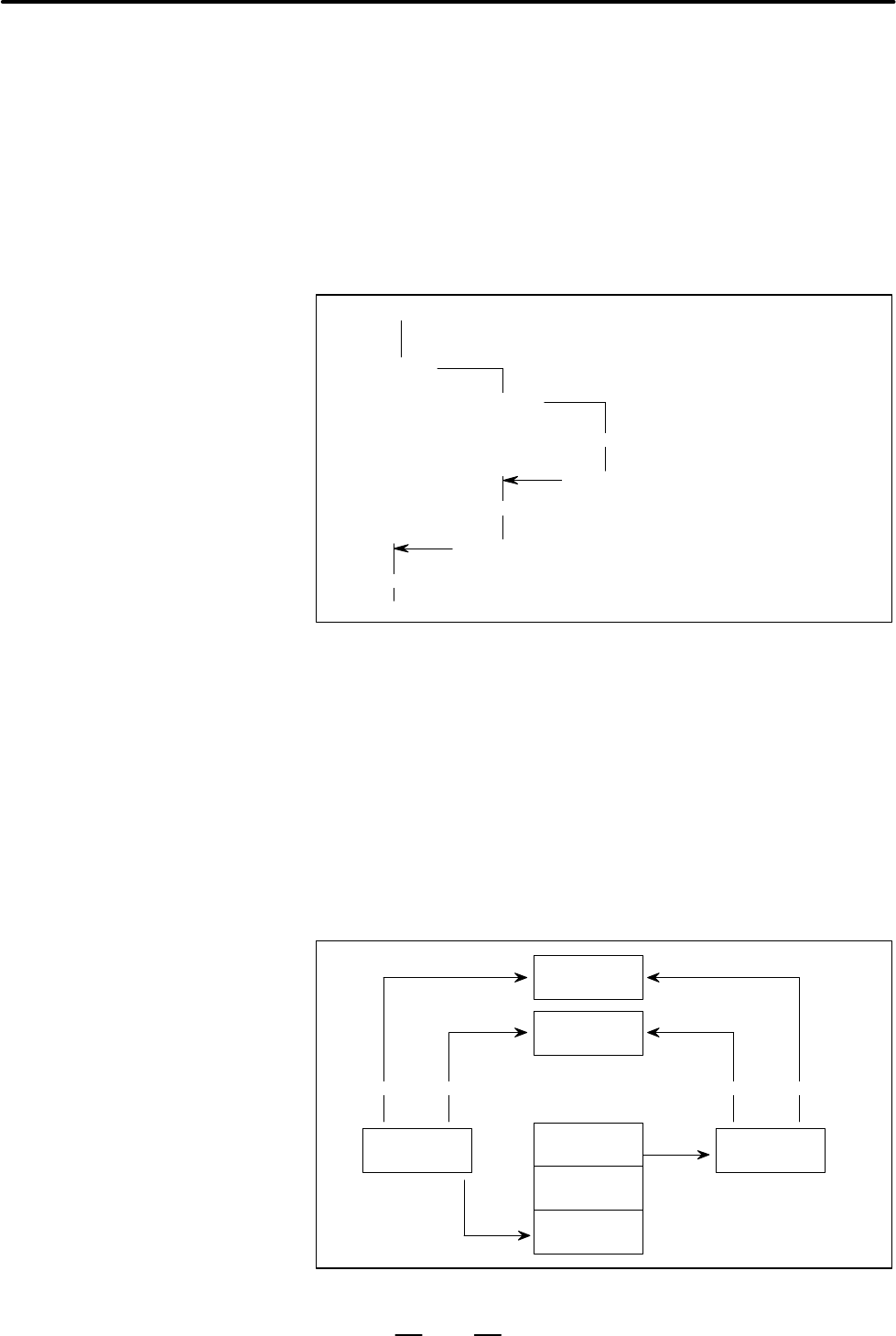

“Example of synchronous control with counter type semaphores”

Suppose that a task is waiting until processing of another task is

completed. In this example, task A is assumed to wait until

processing of task B is completed, and task B is assumed to wait until

processing of task C is completed.

This operation can be controlled by using two semaphores as shown

below:

* In the following operation, assume that A has the highest priority

among the three tasks and that C has the lowest. (Control is

possible even when priorities are undetermined.)

Wait D

TASK A TASK B TASK C SEM D SEM E

Wait E

processing

Signal E

Signal D

processing

–1

processing

“Example of intertask communication with counter type

semaphores”

The following example explains how data is passed between tasks

using a ring buffer.

Let a task writing data in the buffer be task A, and a task reading the

written data be task B.

In the example, assume that data not yet read cannot be overwritten

and that data not yet written cannot be read.

This operation is controlled by using two counter type semaphores as

shown below:

SEM C

Buffer (shared memory)

SEM D

TASK A

Wait Signal

TASK B

Wait Signal

Read

Write
