PMC-MODEL SC/SC3/SC4/NB/NB2 (C Language Programming) Programming manual Page 589

Programming manual

Page of 619

/ 619

FANUC PMC C language function

Supplemental Programming Manual

01 01.05.29

Maruyama

New registration

B-61863E-1/06-1

EDIT DATE DESIG.

DESCRIPTION

8/23

TITLE

DRAW.NO.

Operation of C Language Control Screen of Series 16

/18

/21

-B

Add “9.5 OPERATION OF C LANGUAGE CONTROL SCREEN OF SERIES

16i/18i/21i-B” of “IV APPLICATION PROGRAMMING GUIDE” after “9.4

OPERATION OF C LANGUAGE CONTROL SCREEN OF FS15iA”

9.5 OPERATION OF C LANGUAGE CONTROL SCREEN OF SERIES 16

/18

/21

-B

9.5.1 General of C Language Control Screen

On Series 16

/18

/21

-B, the following C Language Control Screens are provided.

(1)

Display of title, parameter and system information of C language program [TITLE]

(2)

Display of status of the user program task execution

[USRDGN]

(3)

Display of the GDT information and memory of each segment [GDT]

(4)

Display of memory of each task of the user program

[USRMEM]

(5)

Display of debug function of the user program [DEBUG]

(6)

Clear function of the user program [CLEAR]

To display the C language control screen, press soft-key [C LANG].

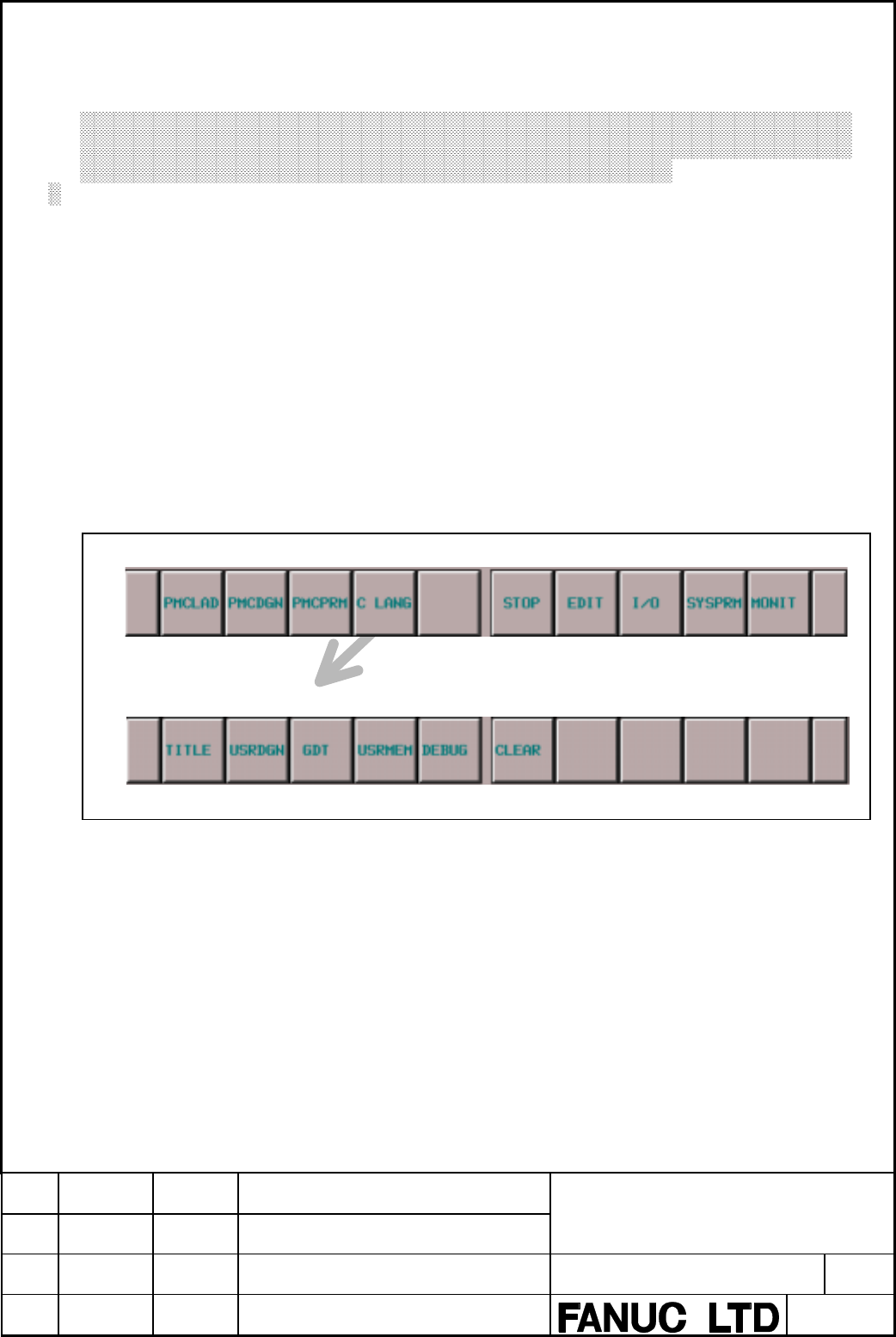

Fig.9.5.1 Transference of soft-key.

C language control screen
