9. GRAPHICS DISPLAY

B–61863E–1/06

PMC LIBRARY

244

SC/SC3/SC4 NB/NB2 16i/18i/21i 15i–A

f f f f

[Name]

pl_grpline

[Description]

Draws a straight line in graphics format.

[Format]

ret = pl_grpline(P1, P2) ;

short ret ;

short *P1 ;

unsigned short P2 ;

[Input]

*P1 Display information

P2 Size of buffer P1

The minimum size is four bytes. The buffer can be expanded

in increments of four bytes. The maximum allowable size is the

same as maximum size allowed for the user buffer area.

[Output]

______

[Returns]

ret Complete code (–11, –1, 0, 2)

[Remarks]

For the return values, see the section on completion code types.

9.7

DRAWING A

STRAIGHT LINE ON

THE CRT GRAPHICS

DISPLAY

N–4

N–2

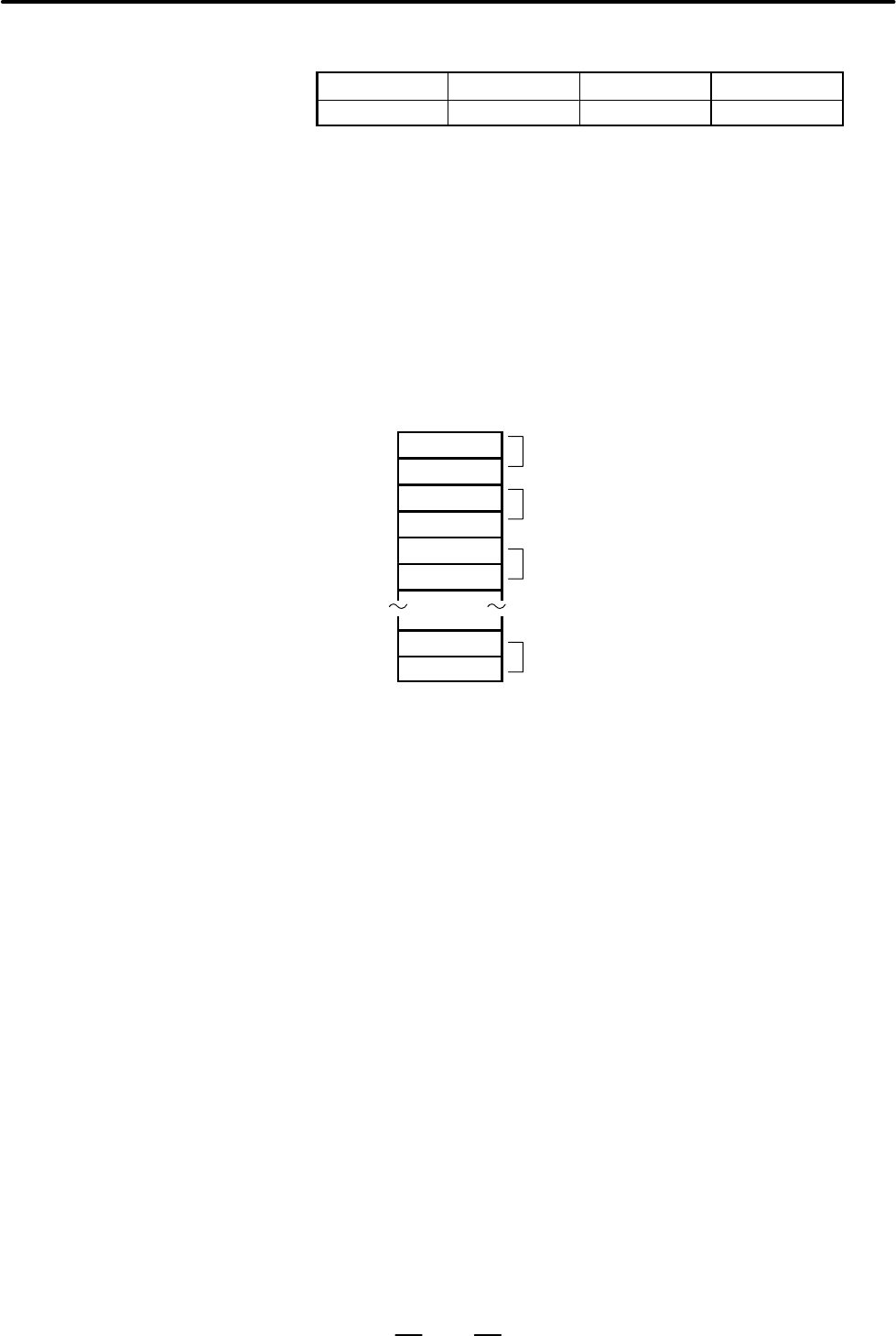

Starting point (X, Y)

End point 1

End point 2

End point m

NOTE

On the 9′′, 14′′, and 10′′ CRTs,

graphic dots can be specified

in the following range:

X coordinate : –320 to 319

Y coordinate : –200 to 199
