2. TASK CONTROL FUNCTION

B–61863E–1/06

PMC CONTROL SOFTWARE

(3) Flag signaling

To signal flags, use the system call, os_sign_flg or os_puls_flg.

To set flags 1, 2, and 3 on, for example, specify 0..0111 as the

parameter of os_sign_flg. (This parameter is referred to as a signal

message.) In this case, a task waiting for the specified flags is released

from the wait state.

D os_sign_flg (continuous-state mode)

Signaled flags are stored in the event flag image. As a result,

subsequently using os_wait_flg does not cause the signaled flags

to enter the wait state unless the event flag image is cleared.

D os_puls_flg (pulse mode)

Signaled flags are not stored in the event flag image. As a result,

subsequently using os_wait_flg causes the signaled flags to enter

the wait state again.

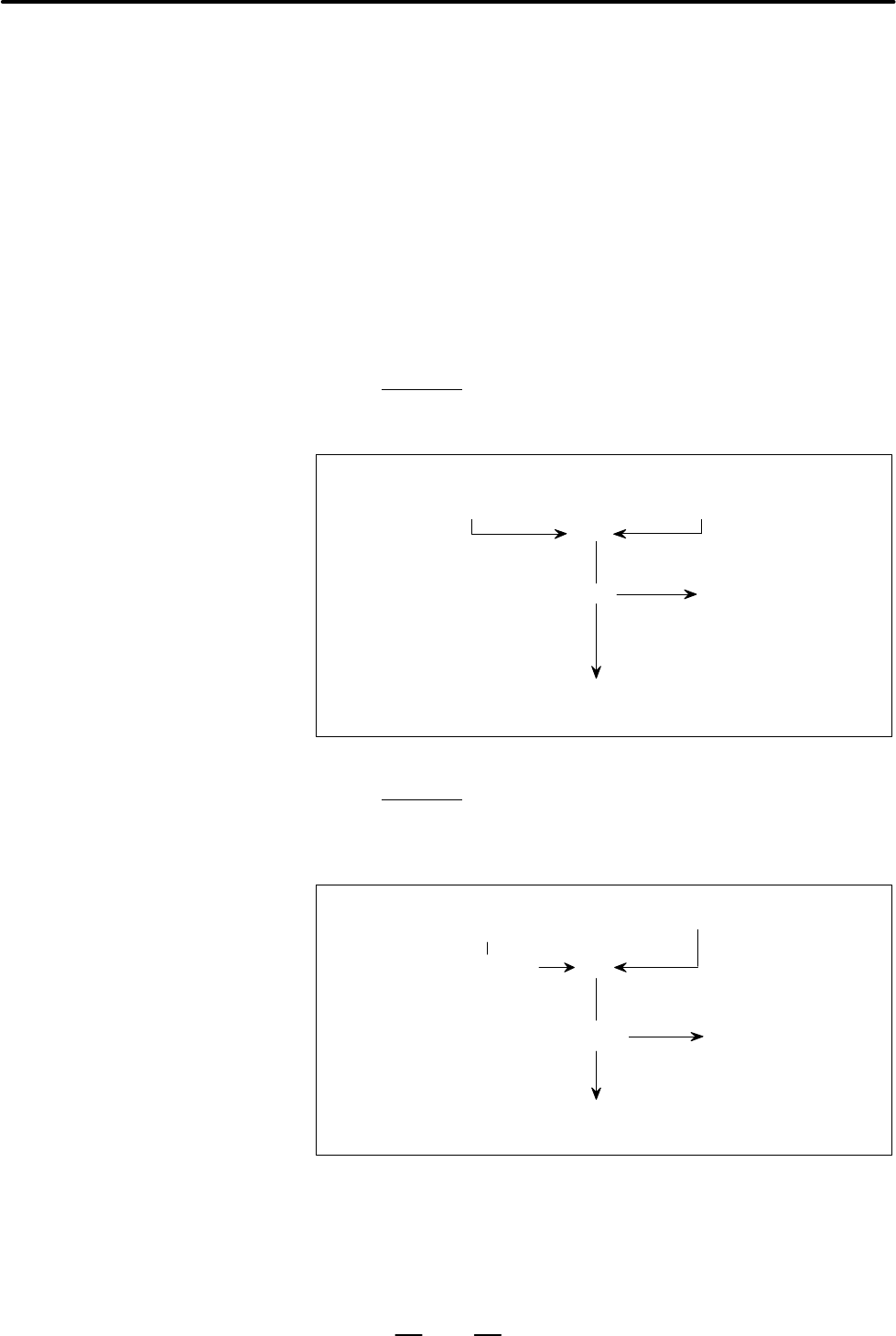

(a) Signal for OR wait

Operation

if(signal message & wait message != 0)

Signal → Releasing the wait state

wait message

0..0000111

signal message

0..0000XXX

Waiting for the signal of flag 1, 2, or 3

wait message 0–0000111

XXX=0 (false)

AND

0..0XXX Ending wait

XXX=1 (true)

(b) AND wait signal

Operation

wait message = ~signal message & wait message

if(wait message = 0)

Signal → Releasing the wait state

wait message

0--0000111

signal message

0--0000XXX

Not

X..XXXXX00

XXX=0 (false)

0..0XXX Ending wait

XXX=1 (true)

Waiting for the signal of flag 1, 2, or 3

wait message 0–0100

AND
