2. TASK CONTROL FUNCTION

B–61863E–1/06

PMC CONTROL SOFTWARE

“Example of intertask synchronous control using event flags”

The following gives a sample application in which the activation of a

communication task and nonvolatile-memory write task is controlled

using event flags.

Task activation conditions

D The supervisory control task is activated every 16 ms. (Use of the timer

function)

D The screen display task is activated using the CUSTOM function key.

D On the user screen, the communication control task is activated by

pressing the I/O soft key. (Use of an event flag)

D A write to nonvolatile memory is performed during communication

control or in the background when the user screen is displayed. (Use

of an event flag)

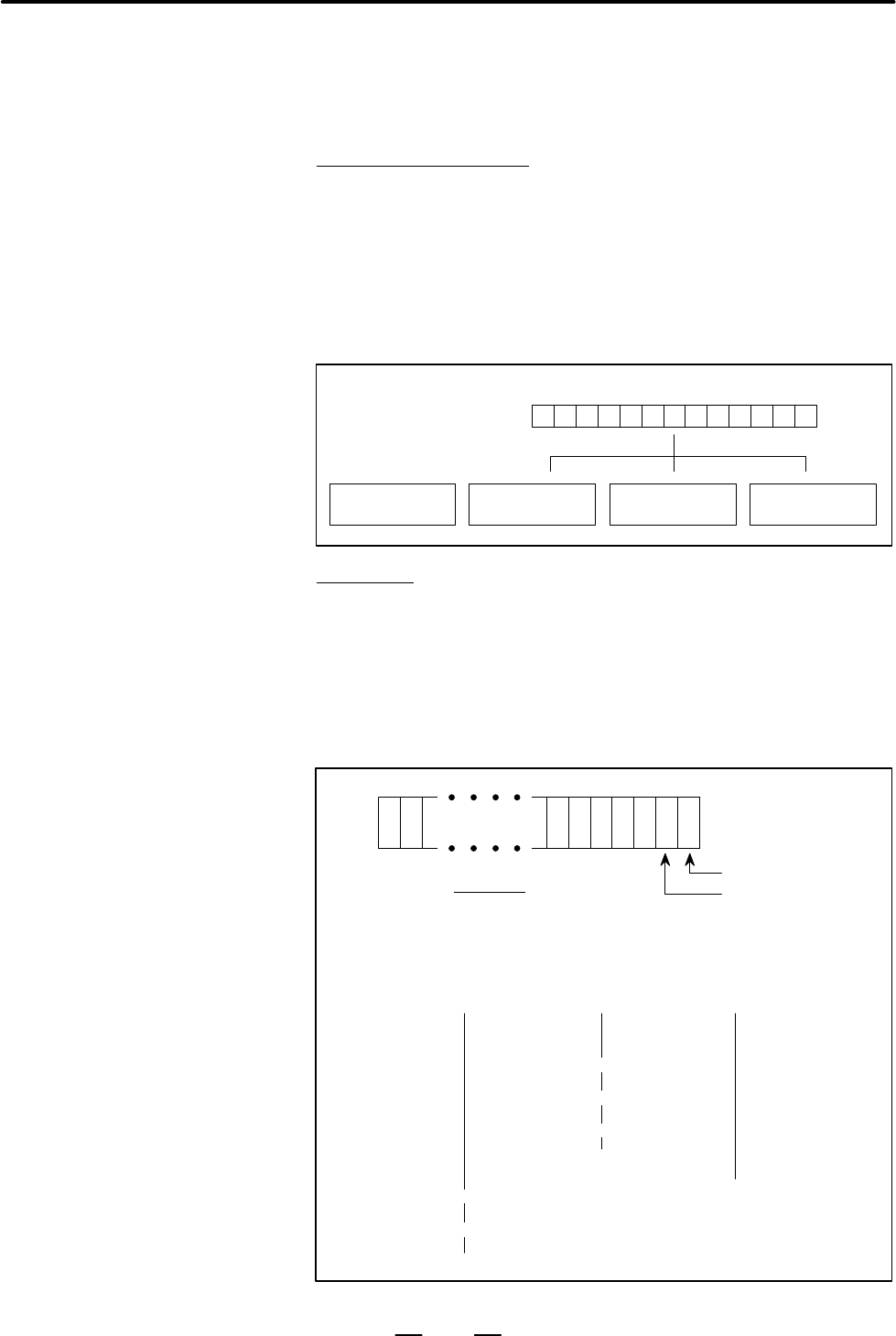

Event flag

Supervisory

control

Communication

control

screeen disp;ay

write to nonvolatile

memory

Use of flags

D Before starting screen display, signal flag 1.

D Clear flag 1 by pressing the FUNCTION key.

D Signal flag 2 by pressing the I/O soft key.

D The communication control task waits for an event with flag 2.

D After communication control terminates, clear flag 2.

D The nonvolatile-memory write task enters the OR-wait state with flags

1 and 2.

Screen display flag

Communication

control flag

Event flags

Operation Communcation

control

Screen display Nonvolatile–memory

write


“CUSTOM”

Wait#1 PCMDI Wait Wait#0 or #1 00

Signal#0 01

Signal#1

Clear#0

PCMDI Wait

“I/O”

“SYSTEM”

Clear#1

Wait#0 or #1

Wait#1
