PMC-MODEL SC/SC3/SC4/NB/NB2 (C Language Programming) Programming manual Page 499

Programming manual

Page of 619

/ 619

B–61863E–1/06

C. DIFFERENCES BETWEEN THE PMC-SC

AND THE PMC-N, AND HOW TO

MIGRATE FROM THE PMC-N/NA TO

THE PMC-SC/SC3/SC4/NB/NB2

APPENDIX

483

(3) PMCMDI activation : Specify a task to wait for a PMCMDI event

(pl_pcmdi_wait) using the PMC system call

function. Issue the pl_pcmdi command

from another task or press the function key

CUSTOM.

Activation

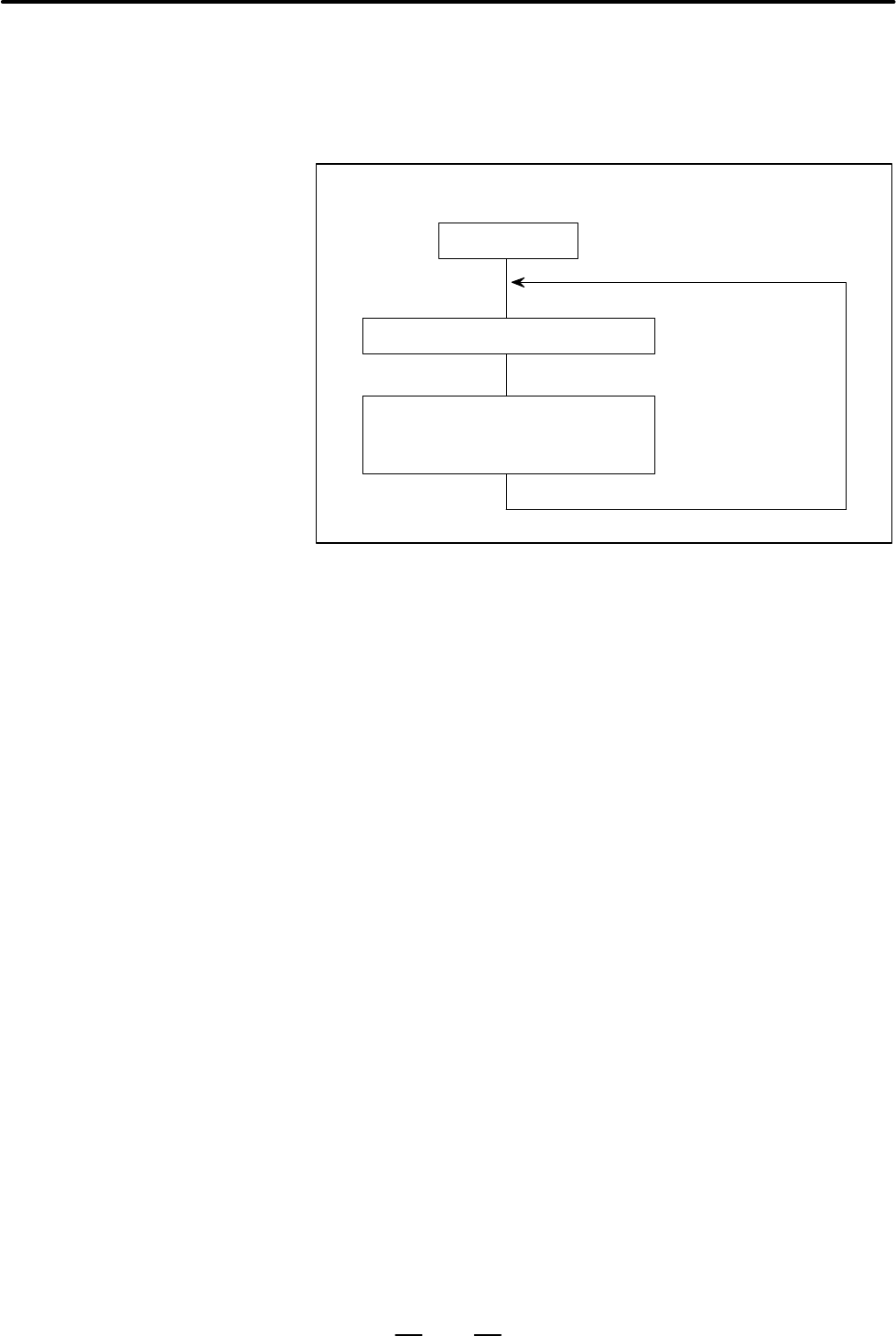

[Outline flowchart]

Processing

For screens other than the PMCMDI screen

Waiting for a PCMDI event

* The PMC control software does not stop tasks even if a screen

other than the PMCMDI screen is displayed. In this case, when

the PMCMDI screen is re-displayed, the user task is responsible

for determining whether to execute tasks from the beginning.
