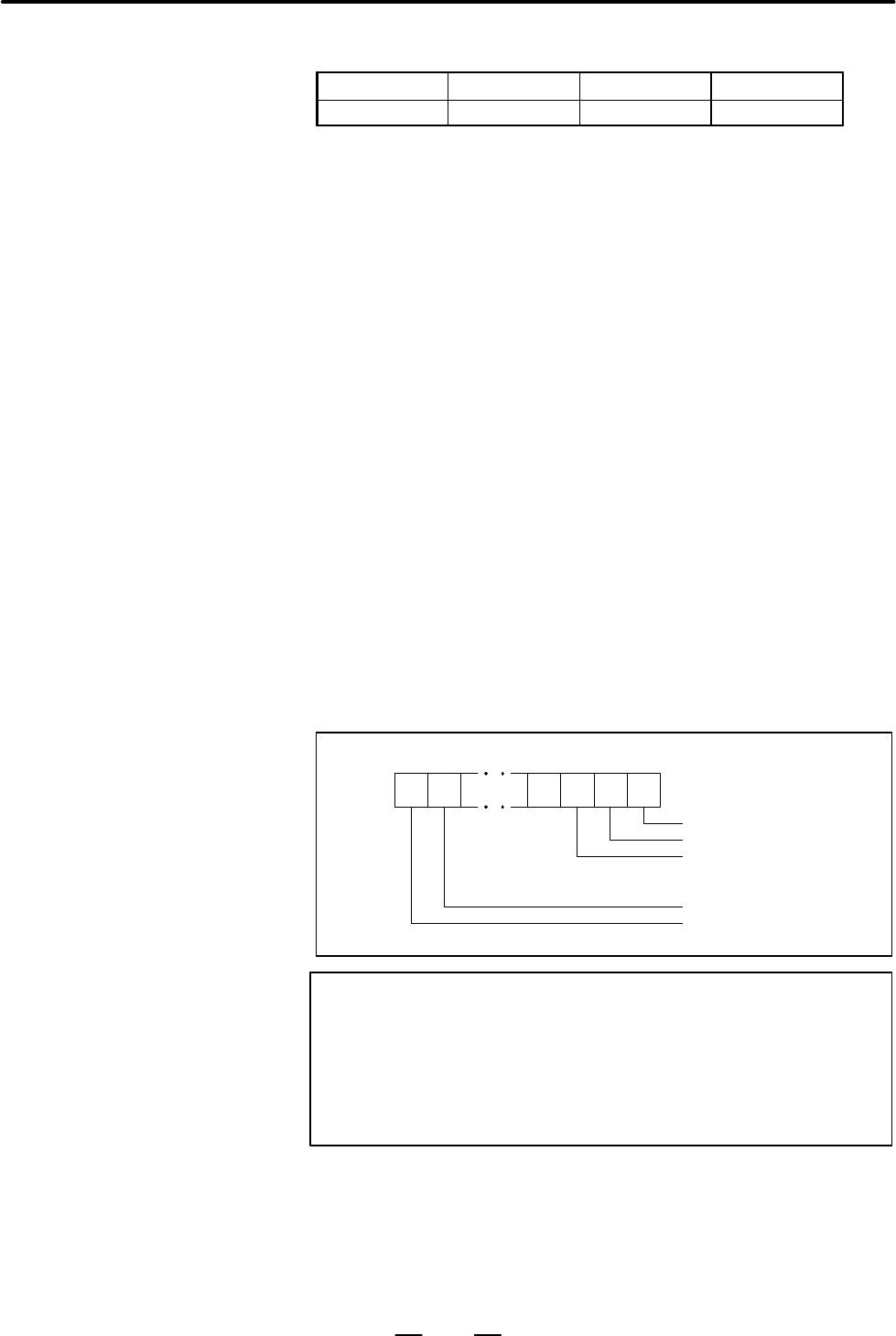

8. CRT CHARACTER DISPLAY

B–61863E–1/06

PMC LIBRARY

232

SC/SC3/SC4 NB/NB2 16i/18i/21i 15i–A

f  f f

[Name]

pl_dspopen4

[Description]

Initializes the VGA screen in 30 rows 80 columns mode.

The position of key–in line display is line 23.

[Format]

ret = pl_dspopen4();

short ret;

[Input]

______

[Output]

______

[Returns]

ret Completion code (–1, 0, 3)

–1 : Other than PMCMDI screen.

0 : Normal termination

3 : This function has been issued for the other than VGA screen.

[Remarks]

This function is effective only in VGA.

When this function is executed, initialization bit of R9072 must be

turned on before character is displayed.

Initialization flag must be set for each task which displays character.

15 14 3 2 1 0

TASK–ID 10 Initialization flag

TASK–ID 11 Initialization flag

TASK–ID 12 Initialization flag

TASK–ID 24 Initialization flag

TASK–ID 25 Initialization flag

R9072

NOTE

In the 15i–A, if some characters may be displayed by the

printf() function after calling this function, call initreq_printf()

function and set the initialize flag for all task displayed

character.

As for the initreq_printf(), refer to Section 8.21.

8.18

INITIALIZING THE

VGA SCREEN

(CHARACTER

DISPLAY) HAVING 30

ROWS 80

COLUMNS
