1. SCREEN INDICATIONS AND OPERATIONS
89
After the system starts normally, the system configuration screen can be
displayed to check the types of mounted printed circuit boards and
software components.
(1)Press the
SYSTEM
key.
(2) Press the [SYSTEMCONFIG] soft key.
(3) There are the following three types of system configuration screens.
The screen can be changed using the
PAGE
or
PAGE
page switch key.
The displayed information is explained below.
D SLOT NO.: Number of the logical slot into which each
printed circuit board is inserted
The number in parentheses indicates each
physical slot number.
Numbers 80 to 8F indicates a secondary slot.
D ATTRIBUTE: Attribute of each printed circuit board
D MODULE ID: Module ID of each printed circuit board
D SOFTWARE ID: Software ID of each printed circuit board
D SERIES: Series of the software on each printed circuit
board with a CPU
1.13
SYSTEM
CONFIGURATION
SCREEN
1.13.1
Displaying the System
Configuration Screen
1.13.2
Printed Circuit Board
Configuration Screen

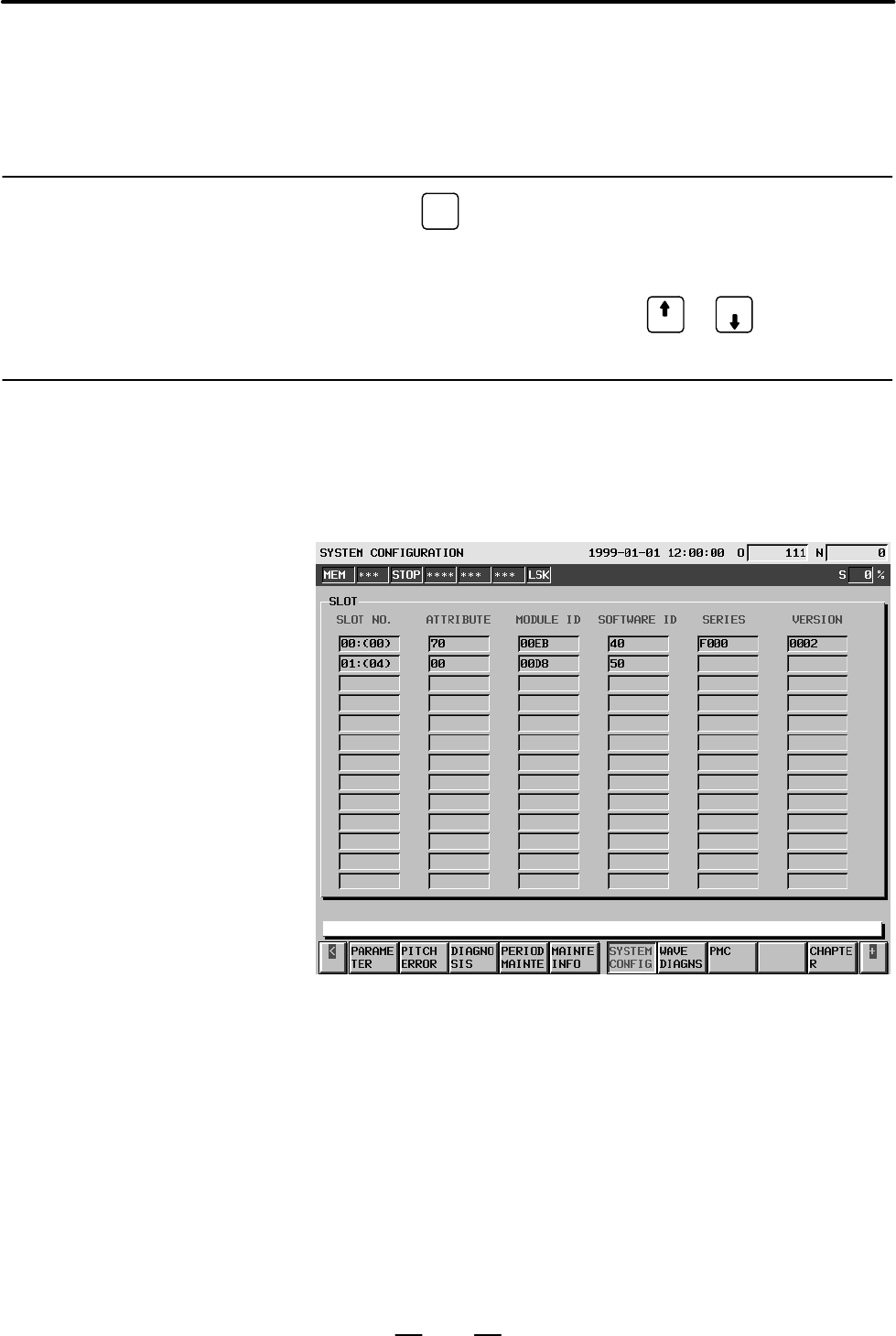

(1) Screen display
Previous page
Next page
