1. SCREEN INDICATIONS AND OPERATIONS
73
LIFE
The life (unit: hours) of each target item for periodic maintenance is
displayed.
REMAIN
The remaining life time (unit: hours) of each target of periodic
maintenance is displayed. When the ratio of the remaining time to the
total life becomes less than or equal to the ratio (%) specified by
parameter No. 2239, the item name is displayed in red as a warning.
The remaining time is displayed in hours. Therefore, the displayed
time does not include fractions of one hour. For example, when 20 [H]
is displayed for Remain, the actual remaining time is longer than or
equal to 20 hours but shorter than 21 hours.
COUNT TYPE
The type of life counting is displayed.
Indication Meaning
None
Counting is not performed (stops).
ALL TIME
The time that has elapsed since the life was set is
counted.
POWER ON
The power–on time is counted.
AUTO START
The automatic operation time is counted.
CUTTING
The cutting time is counted.
The item setting screen can be used to set periodic maintenance data such
as the time and count type for each selected item.

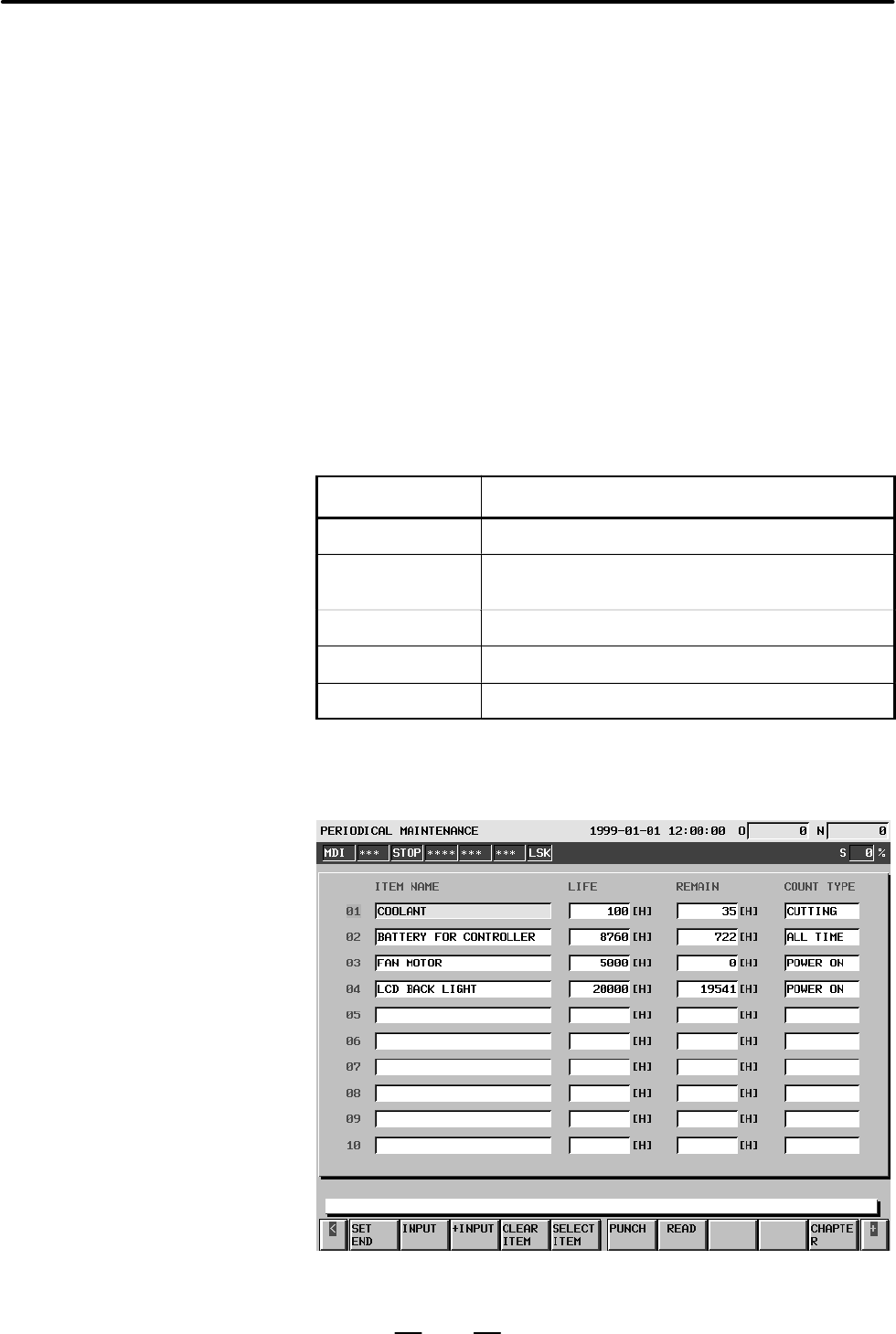

Fig. 1.11.1 (b) Item setting screen
Item setting screen
