Series 15i/150i - Model B Maintenance manual Page 347

Maintenance manual
B–63785EN/01
5. DIGITAL SERVO
325

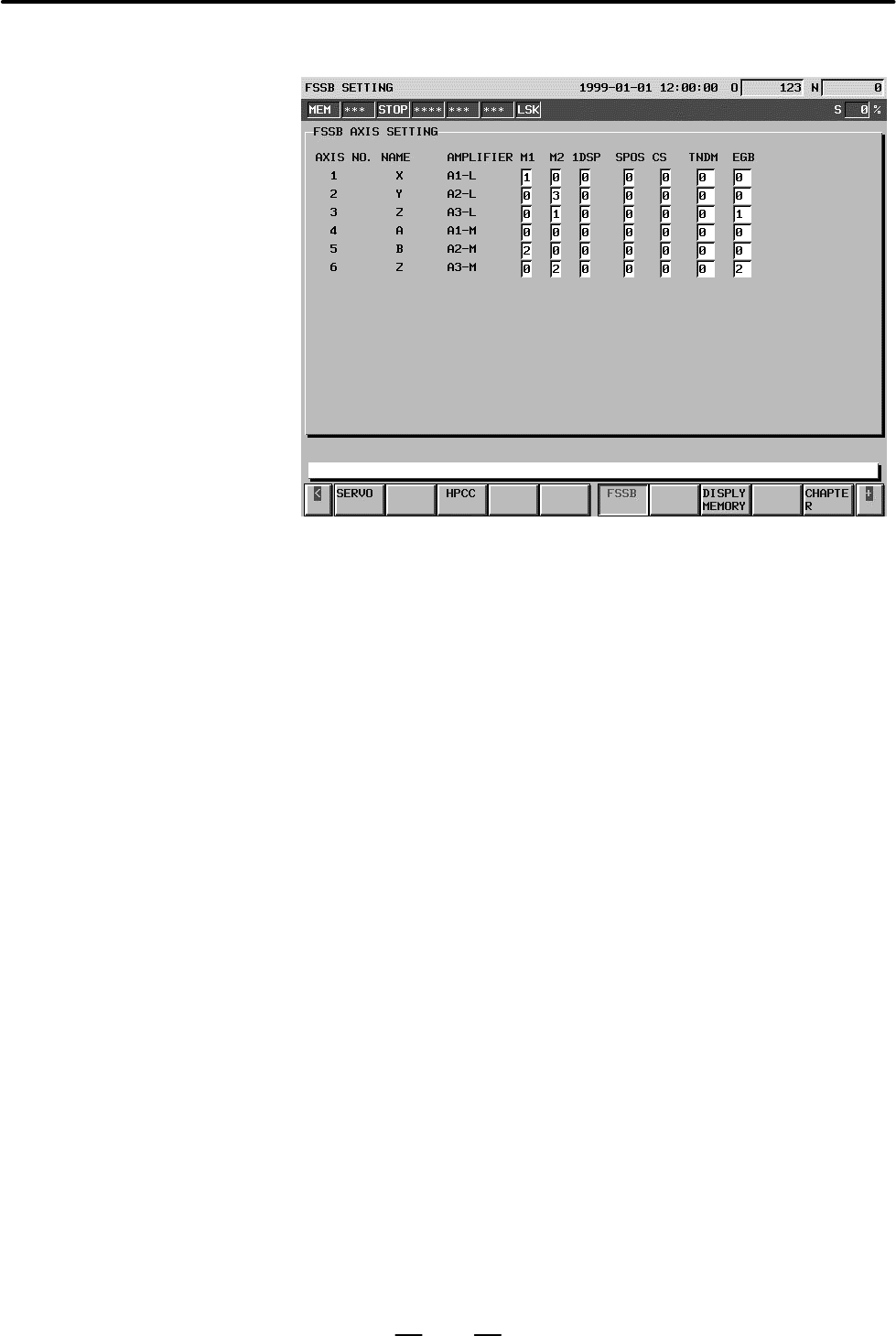

The axis setting screen displays axis information.
Fig. 5.2 (e)
The axis setting screen displays the following items:
D AXIS NO.
This item is the placing of the NC controlled axis.
D NAME
This item is the name of the corresponding controlled axis.
D AMP
This items is the type of the amplifier connected to each axis.
D M1
This item is the number of the connector for pulse module 1, specified
in parameter No. 1094.
D M2
This item is the number of the connector for pulse module 2, specified
in parameter No. 1095.
D 1DSP
This item is the value specified in bit 0 (parameter 1DSP) of parameter
No. 1092. It is 1 for an axis (such as a high–speed current loop axis
or high–speed interface axis) that exclusively uses hardware, which is
usually shared by two axes.
D SPOS
This item is the value specified in parameter No. 1027. A value other
than 0 is displayed for the controlled axes used for spindle positioning.
D Cs AXIS
This item is the value specified in parameter No. 1028. A value other
than 0 is displayed for the axes used for Cs contour control.
D TANDEM
This item is the value specified in parameter No. 1097. Consecutive
odd and even numbers are displayed for the master and slave axes for
tandem control.
D Axis setting screen
