Series 15i/150i - Model B Maintenance manual Page 190

Maintenance manual
2. 15i SERIES HARDWARE
B–63785EN/01
168
(1) Disconnect all the cables from the board. If any cable fouls the board
as it is being pulled out, also disconnect that cable. (The battery cable
of the main CPU board need not be disconnected.)
(2) Grip the two pulls.
(3) While holding down the hooks in the pulls, pull the board towards
you.
· The battery is pulled out together with the main CPU board,
because it is mounted on a faceplate on the board.
· The main CPU board and full–size option board can be
demounted without removing the mini slot option board. (If
any cable connected to the mini slot option board fouls the
option board as it is being pulled out, however, the cable
must be disconnected.)

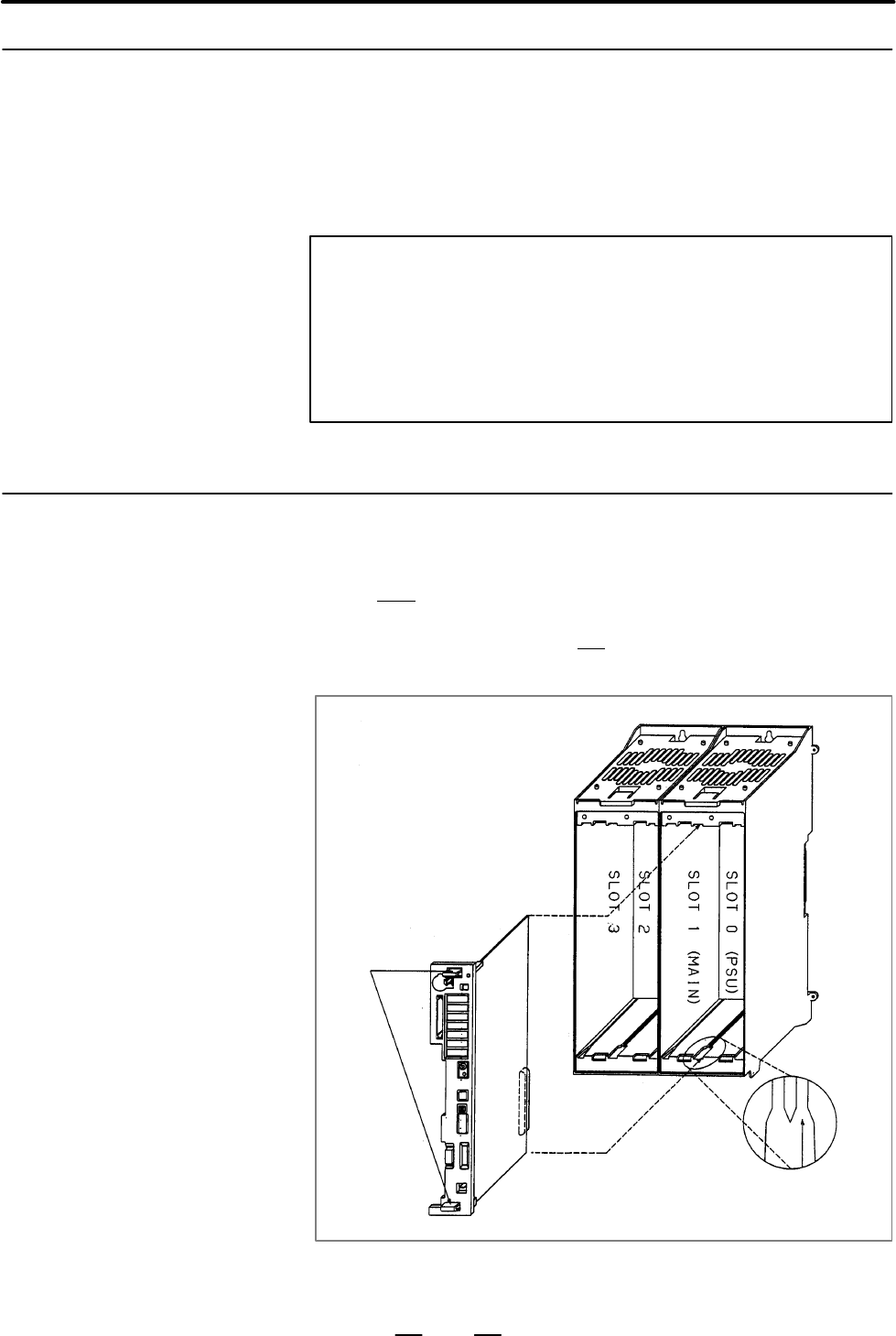

(1) Mount a new board onto the rail on the rack, then slowly slide the
board into the rack until it locks.
The main board slot (SLOT1) has two rails. Place the main board on
the right
rail.
The additional axis board slot (SLOT3) has two rails. Place an
additional axis board on the left
rail.
(2) Reconnect the cables.
Pull
2.5.1.1
Demounting the board
2.5.1.2
Mounting a board
