Series 15i/150i - Model B Maintenance manual Page 320

Maintenance manual
4. INTERFACE BETWEEN THE NC AND PMC
B–63785EN/01
298
In the timer, counter, keep relay, and data table screens, it is possible to
enter data continuously. The cursor will rest at the last data entered.
D Entry method
(a) Use “;” (EOB) as a data delimiter.
(Example) “100; 200; 300;”+“INPUT” key
(b)Use “;=” to enter the same data as the preceding one.
(Example) “100;=;=;200;=”+“INPUT” key results in:
100,100,100,200,200
(c) Use “;;” to skip an address.
(Example) “100;;100”+“INPUT” key keeps the second item
from being entered.

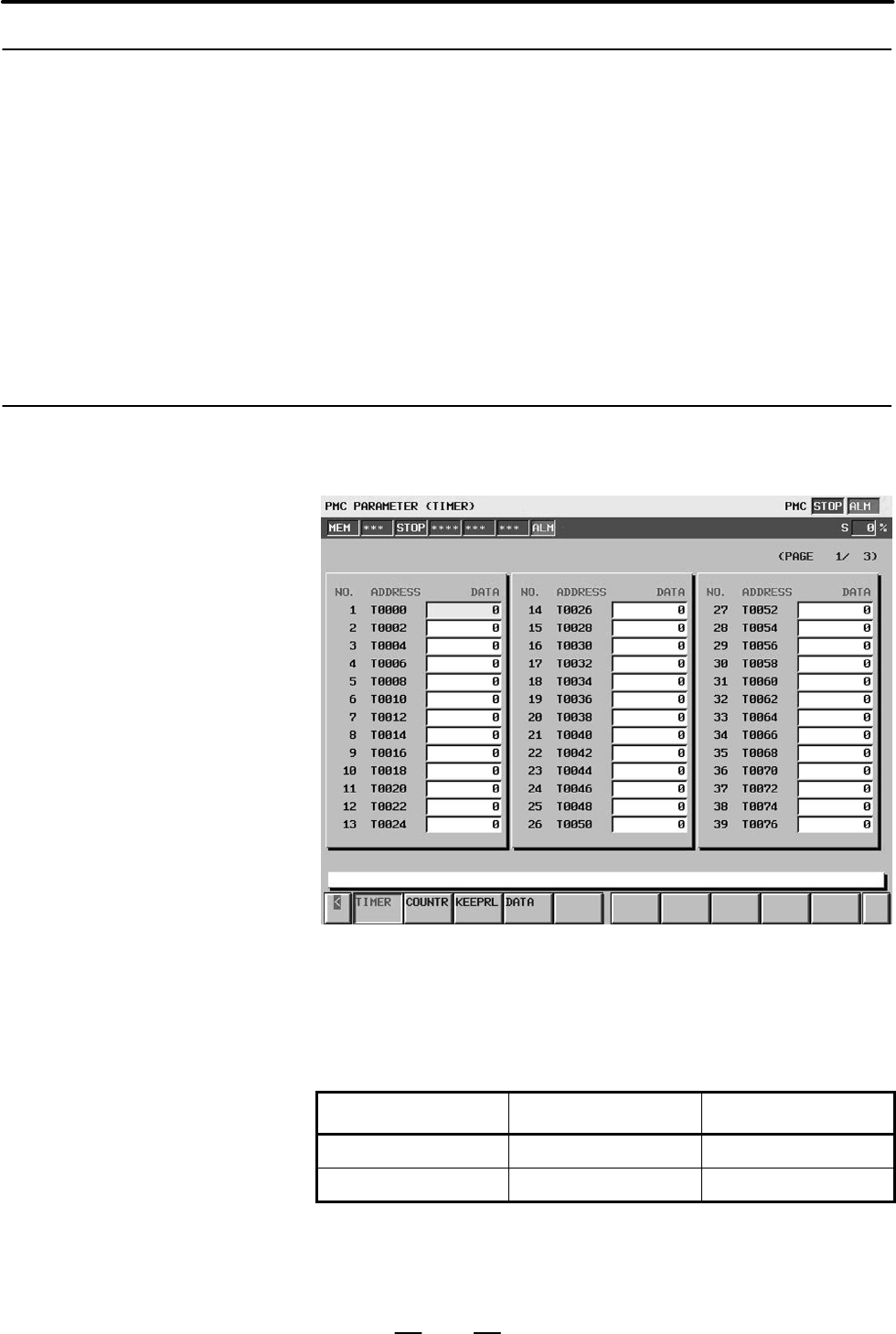

The timer screen is used to set and view the time value in a functional
instruction timer (SUB3).
Table contents
S NO.: Timer number specified for the functional instruction
timer
S ADDRESS: Address referenced by the sequence program
S DATA: Time set in the timer
Timer number Minimum set time Maximum set time
1 to 8 48ms 1572.8 s
9 to 150 8ms 262.1 s
4.3.4.3
Continuous data entry
4.3.4.4
Timer screen (TIMER)
