Series 15i/150i - Model B Maintenance manual Page 94

Maintenance manual
1. SCREEN INDICATIONS AND OPERATIONS
B–63785EN/01
72
The periodic maintenance screen can be used to set the life of each
consumable which must be replaced regularly (examples: backup battery
for the control unit and LCD unit backlight) and to check whether
replacement and inspection are required.
The periodic maintenance screen consists of the following three screens.
The status display screen can be used to check the status of each target
item for periodic maintenance. The status of up to ten items is displayed.

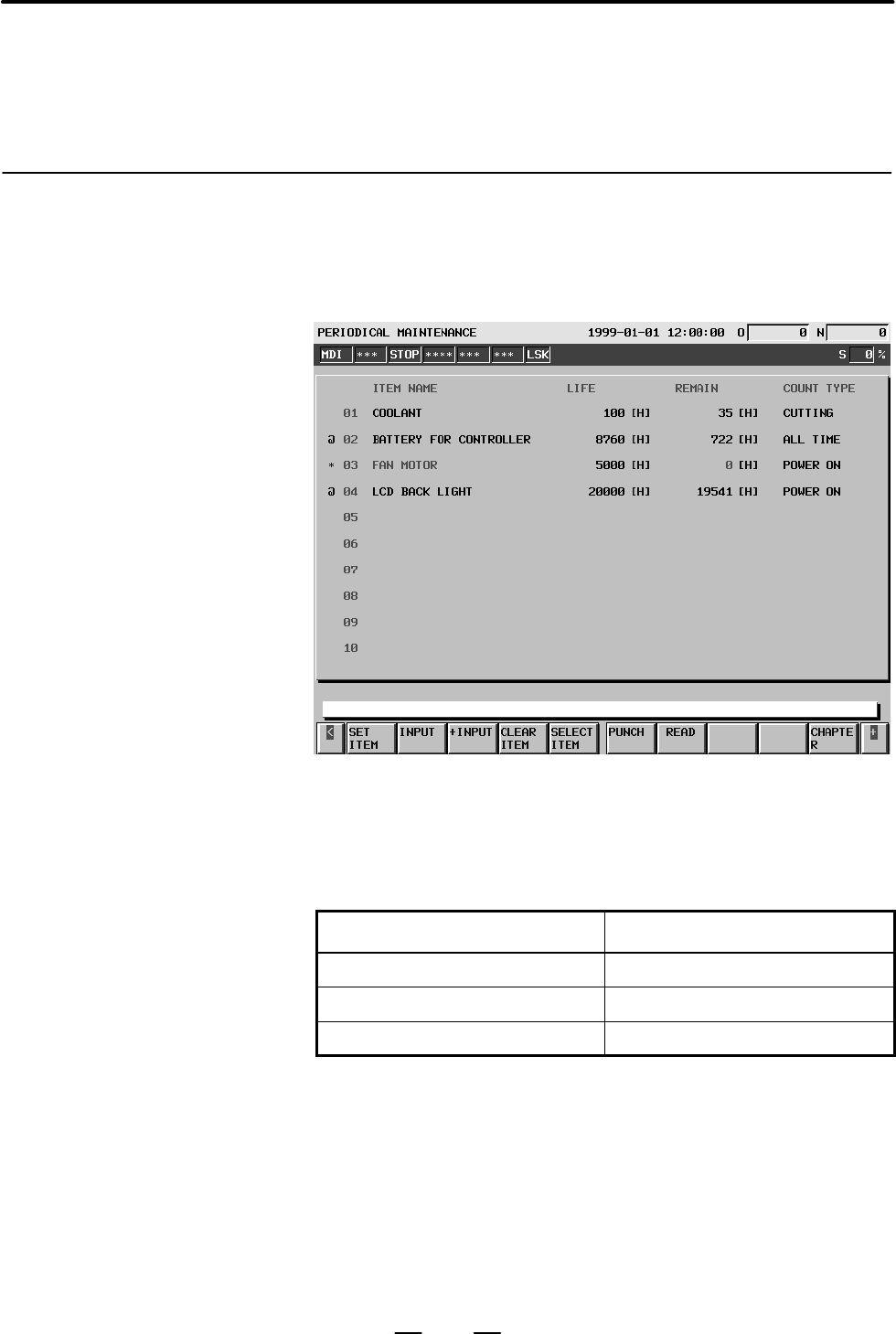

Fig. 1.11.1 (a) Status display screen
COUNTING STATUS
The mark displayed at the left of each item number indicates the
counting status.
Indication Counting status
None Counting stops.
@ Counting in progress
* End of the life
ITEM NUMBERS
Serial numbers from 01 to 10
ITEM NAME
The name of each target item for periodic maintenance is displayed.
When the ratio of the remaining time to the total life becomes less than
or equal to the ratio (%) specified by parameter No. 2239, the item
name is displayed in red as a warning.
1.11
PERIODIC
MAINTENANCE
SCREEN
1.11.1
Display
Status display screen
