Series 15i/150i - Model B Maintenance manual Page 24

Maintenance manual
1. SCREEN INDICATIONS AND OPERATIONS
B–63785EN/01
2

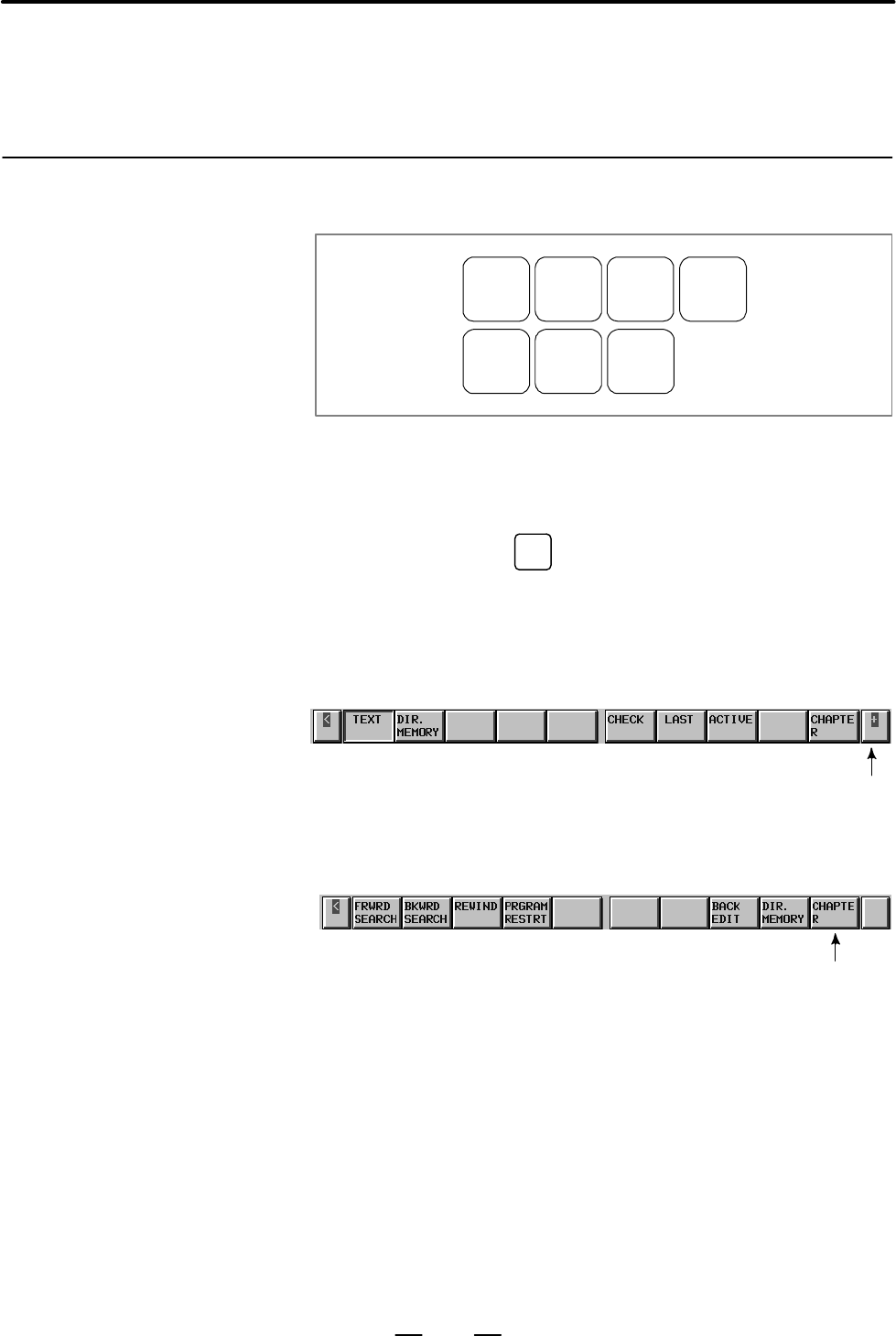

(1) Press a function key on the MDI panel to show the soft keys for
chapter selection related to the function.
POS PROG
OFFSET
SETTING
SYSTEM
MESSAGE
GRAPH
CUSTOM
(2) Press one of the indicated soft keys for chapter selection to display the
corresponding screen.
(3) Press an operation menu key to perform an operation on the displayed
chapter screen.
When you press the
PROG
key, for example, the following soft keys
for chapter selection are shown.
When the screen is first displayed, the first chapter is selected. (In this
example, “TEXT” is selected.)
To show an operation selection menu on this screen, press an
operation menu key at the rightmost position.
Operation menu key
(4) To return to the indications of the chapter–menu keys for chapter
selection while the operation selection menu is being displayed, press
the CHAPTER key.
CHAPTER key
The foregoing indication procedure is for general screens.
An actual indication procedure depends on each screen.
For specific operations, see each operation description.
1.1
FUNCTION KEYS
AND SOFT KEYS
1.1.1
Indication Procedure
for General Screens
