1. SCREEN INDICATIONS AND OPERATIONS
B–63785EN/01
110

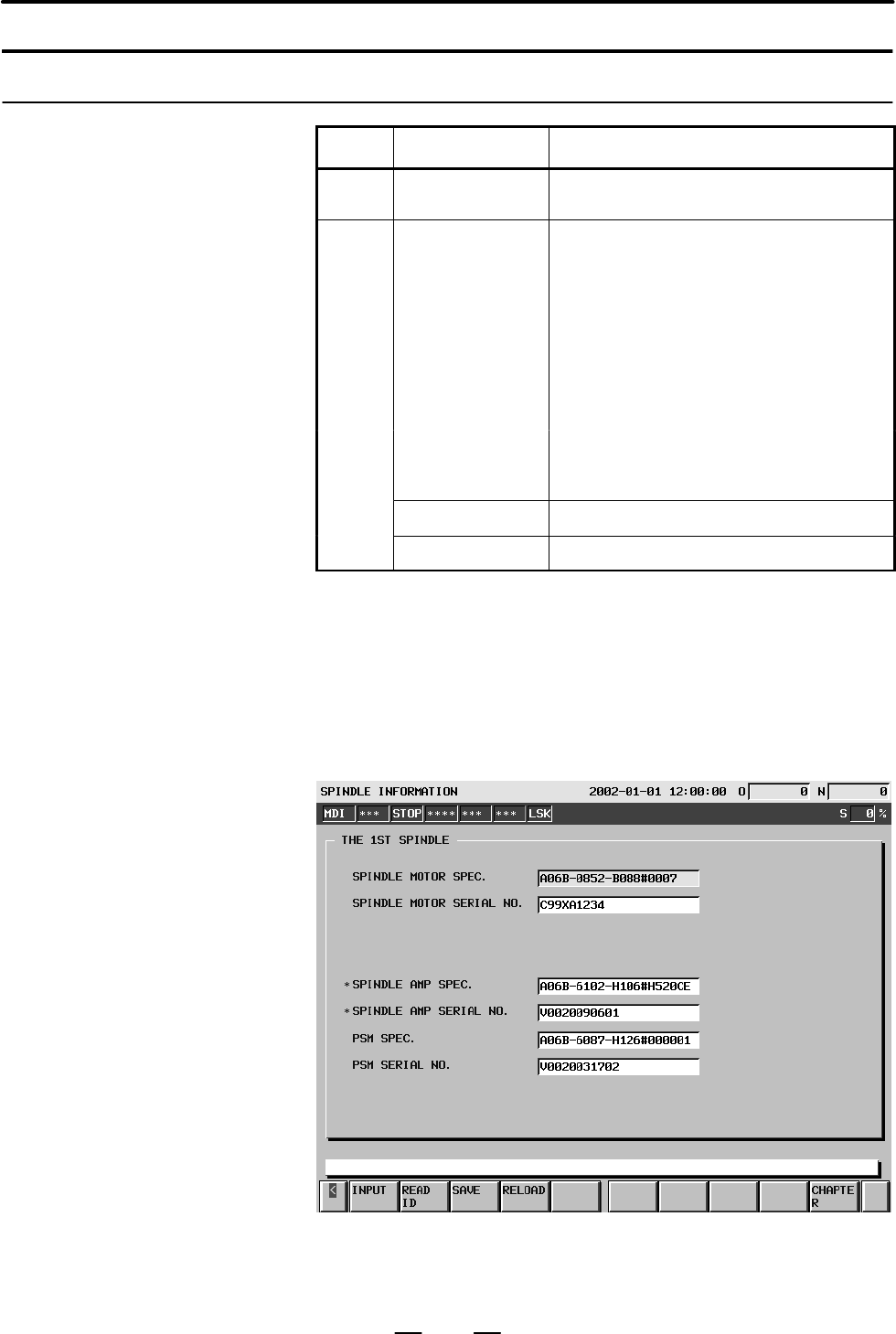

Screen operation
Mode Key operation Use
Viewing
(g1)
Page key Scrolls up or down on a screen–by–screen basis.
Editing
(g2)
Soft key
[INPUT] Replace the selected ID information at the cursor
posi–tionwith the character string in key–in buffer.
[READ ID] Transfers ID information of the selected connected
unit at the cursor position to the key–in buffer. This
soft key is valid only for an item at the left of which
an asterisk (*)(g3) is displayed.
[SAVE]
(g4)
Saves the ID information that has been changed on
the servo information screen in flash ROM.
[RELOAD] Cancels the ID information that has been changed
on the servo information screen and loads ID in-
formation from flash ROM.
Page key Scrolls up or down on a screen–by–screen basis.
Cursor key Scrolls up or down the selection of ID information.
(g1) Viewing mode: when parameter IDW (No.0009#0) = 0
(g2) Editing mode: when parameter IDW (No.0009#0) = 1
(g3) Spindle information is stored in flash ROM. If there is a difference
between the servo information in flash ROM and the actual spindle
information, the corresponding items are preceded by *.
(g4) When the servo and spindle information is saved, current
maintenance information is also saved.
Previous page
Next page
