Series 15i/150i - Model B Maintenance manual Page 348

Maintenance manual
5. DIGITAL SERVO
B–63785EN/01
326
D EGB
This item is the value specified in parameter No. 1096. Consecutive
odd and even numbers are displayed for the slave and dummy axes
when using the EGB function.
The amplifier maintenance screen displays maintenance information for
servo amplifiers.

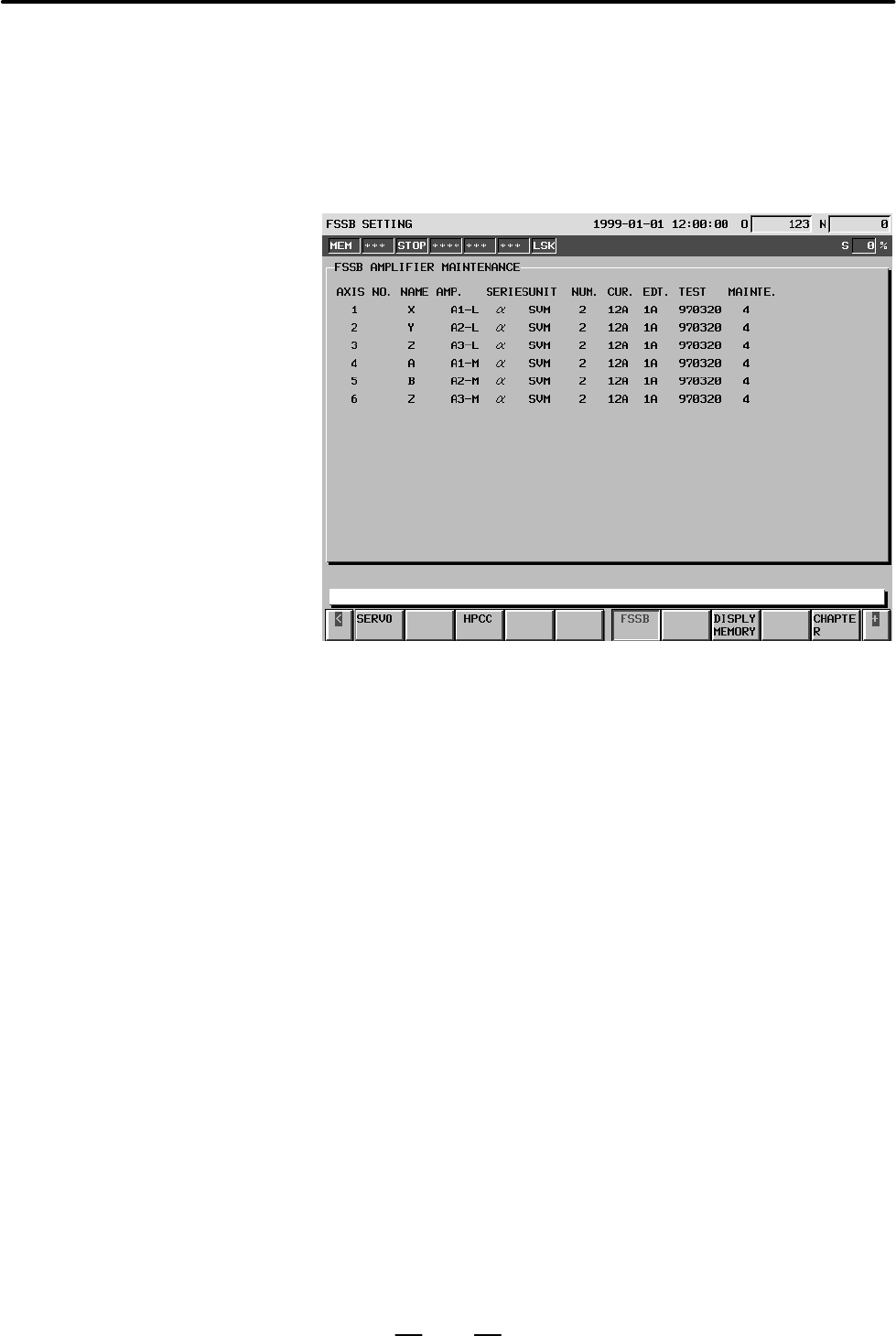

Fig. 5.2 (f)
The amplifier maintenance screen displays the following items:
D AXIS NO. (controlled axis number)
D NAME (controlled axis name)
D AMP (type of amplifier connected to each axis)
D SERIES (servo amplifier series of an amplifier connected to each axis)
D UNIT (unit type of a servo amplifier connected to each axis)
D NO. OF AXES (maximum number of axes controlled by an
amplifier connected to each axis)
D CURRENT (maximum rating for amplifiers connected to each axis)
D VERSION (unit version number of an amplifier connected to each
axis)
D TEST (date of test performed on an amplifier connected to each axis)
Example) 970320 = March 20, 1997
D MAINTENANCE (engineering change number for an amplifier
connected to each axis)
D Amplifier maintenance
screen
Previous page
Next page
