Series 15i/150i - Model B Maintenance manual Page 49

Maintenance manual
B–63785EN/01
1. SCREEN INDICATIONS AND OPERATIONS
27
Display the waveform–diagnosis graphic screen according to the
procedure described in II 2.6 Soft Keys in the FANUC Series
15i/150i–MA Operator’s Manual (Operation) (B–63324EN–1).
The wave–form diagnosis graphic screen provides data tracing operations
and the waveform indications of traced data.

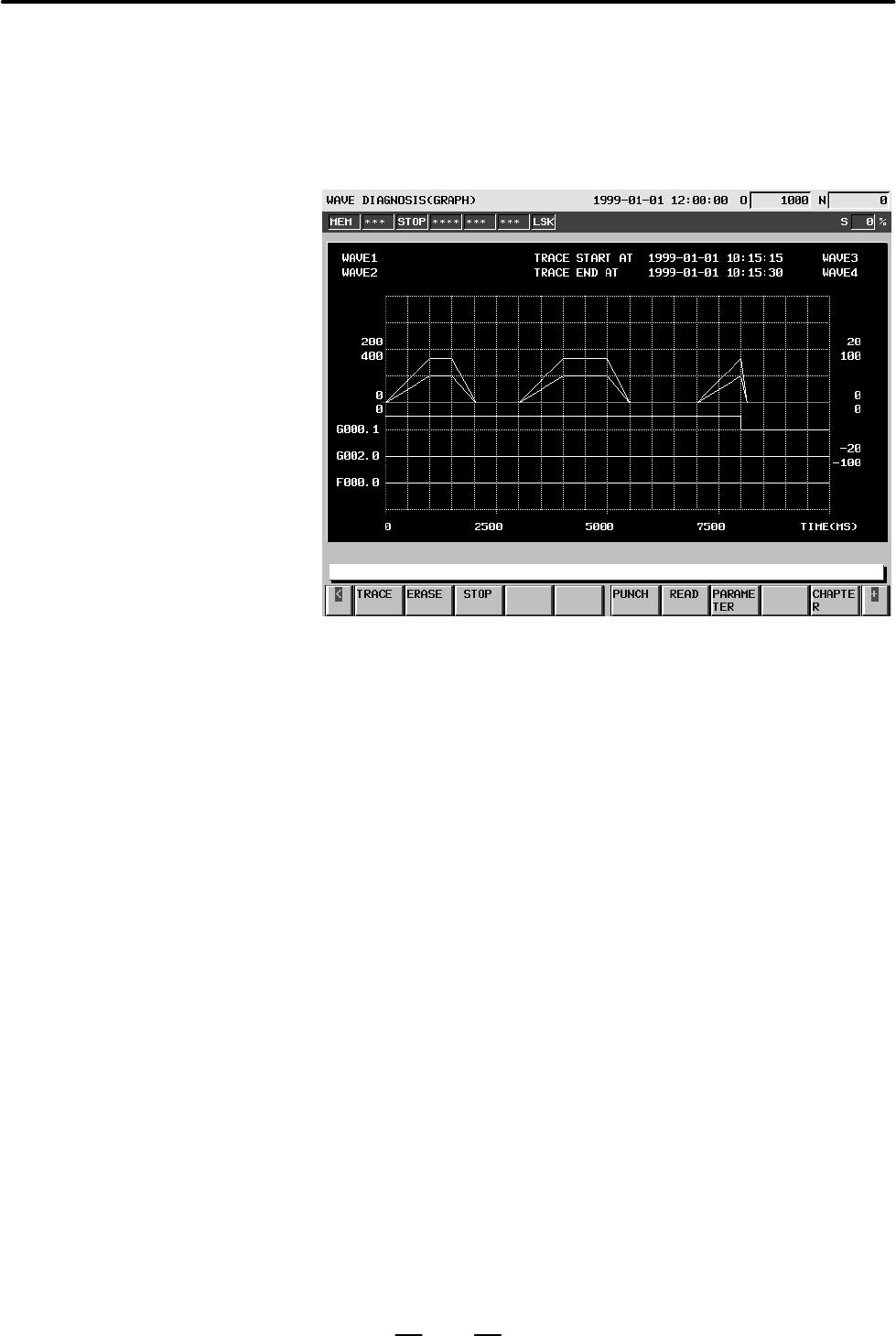

Fig. 1.5 (a) Waveform–diagnosis graphic screen
The waveforms of a total of four items among the servo–related items, the
combined speed for all axes, and the spindle–related items are drawn with
colors specified for the items.
At the left–hand side of the screen, the graduations of the first waveform
and the second waveform are indicated by the same colors as for the
waveforms. At the right–hand side of the screen, the graduations of the
third waveform and the fourth waveform are indicated in the same way.
The addresses of traced machine signals are indicated at the right–hand
side of the screen. The waveforms of the machine signals are drawn in
white.
The tracing start time and the tracing end time of traced data are indicated
at the top of the screen. While data is being traced, a message of “Tracing”
is indicated.
Waveform–diagnosis
graphic screen
D Waveform–diagnosis
graphic screen
