Series 15i/150i - Model B Maintenance manual Page 29

Maintenance manual
B–63785EN/01
1. SCREEN INDICATIONS AND OPERATIONS
7
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10)
(11) (12) (13) (14) (15) (16) (17) (18) (19)
(21) (22) (23) (24) (25) (26) (27) (28) (29)
OFFSET
SET-
TING
CHAP-
TER
Function key on the MDI panel
Soft keys
OFFSET
SET-
TING

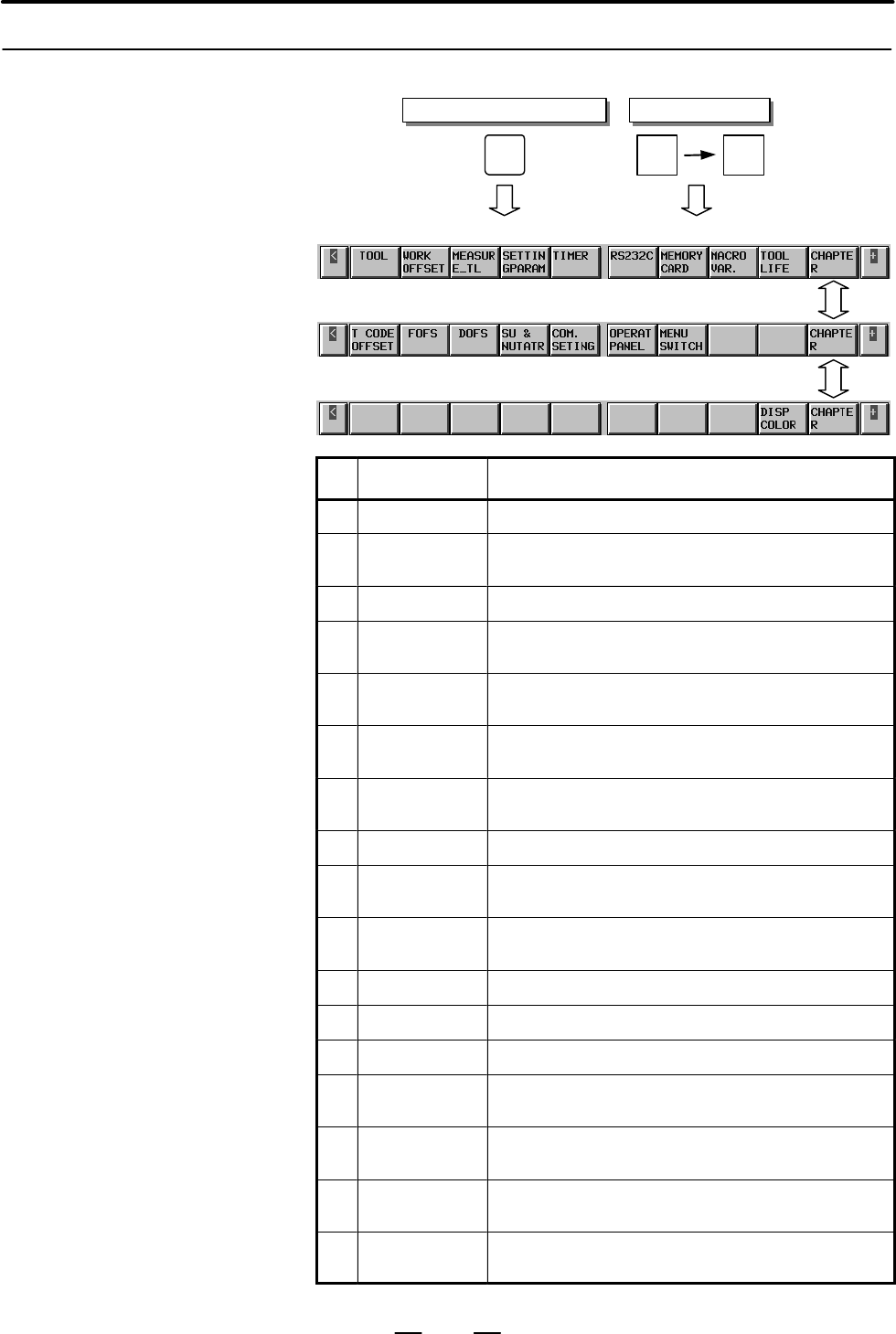

No. Chapter menu Description
(1) TOOL Selects a screen for setting a tool offset value.
(2) WORK OFFSET Selects a screen for setting an offset in the workpiece coordi-
nate system.
(3) MEASURE_TL Selects a screen for measuring a tool length.
(4) SETTINGPARA-
METER
Selects a screen for specifying setting parameters.
(5) TIMER Selects a screen for indicating information related to the num-
ber of machined parts and the operation time period.
(6) RS232C Selects a screen for operating a unit connected to the
RS–232C interface.
(7) MEMORYCARD Selects a screen for performing an operation related to a
memory card.
(8) MACRO VAR. Selects a screen for setting a macro variable.
(9) TOOL LIFE Selects a screen for performing a setting related to tool life
management.
(11) T CODEOFFSET Selects a screen for setting a tool number, a pot number, and
a tool offset value in tool offset by the tool number.
(12) FOFS Selects a fixture offset screen.
(13) DOFS Selects a dynamic tool offset screen.
(14) SU & NUTATR Selects an SU & NUTATR offset screen.
(15) COM. SETING Selects a screen for performing a setting related to RS 232C
and RS 422.
(16) OPERATPANEL Selects a screen for operating a part of the operation switches
on the machine operator’s panel as soft switches.
(17) MENU SWITCH Selects a screen for setting a part of input switch signals input
by a signal from the machine, in CNC operations.
(29) ETHERNET Selects a screen for performing a setting related to an Ether-
net board.
1.1.5.3
Offset/setting
Previous page
Next page
