4. INTERFACE BETWEEN THE NC AND PMC
B–63785EN/01
302
The data table screen is further divided into two sections, data table
control data and data table.

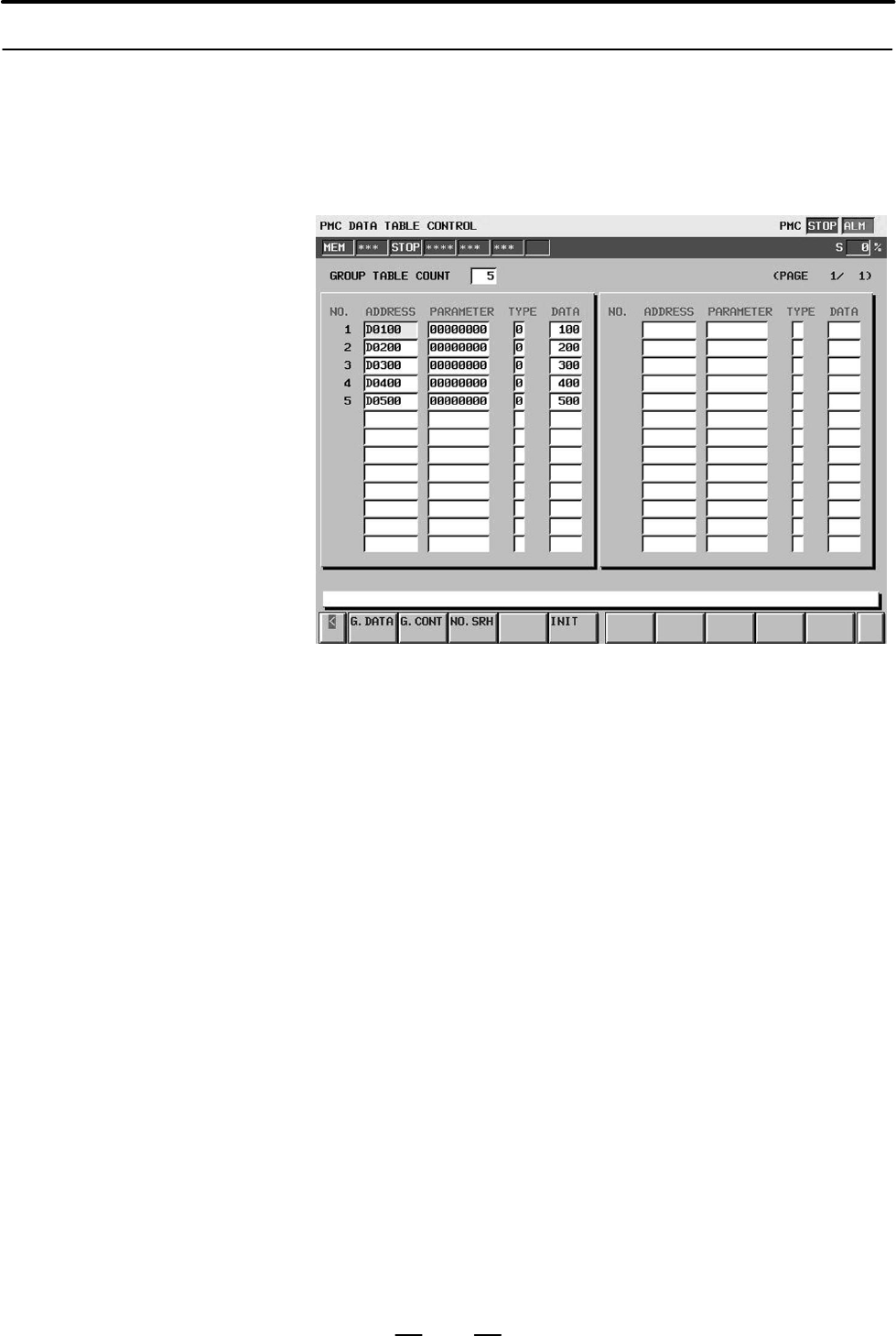

(1)Data table control data screen (C.DATA)
Clicking the [DATA] soft key displays the data table control data
setting screen (for managing the data table).
Table contents
S GROUP TABLE COUNT: The number of data items in the data
table
S NO.: Group number
S ADDRESS: Data table start address (two or more
groups can specify the same
address.)
S PARAMETER: Table parameter (Note)
S TYPE: Data length (0 = 1 byte; 1 = 2 bytes;
2 = 4 bytes)
S DATA: Number of data items in each data
table
Meanings of the soft keys
[G.DATA]: Clicking this soft key displays the data table data setting and
display screen.
[G.CONT]: After the number of groups is entered, clicking this soft key
sets the number of groups in the data table.
[NO.SRH]: After a group number is entered, clicking this soft key moves
the cursor to the specified group.
[INIT]: Clicking this soft key initializes the data table.
: The initial data of the data table is as follows:
NO ADDRESS PARAMETER TYPE DATA
001 D0000 00000000 0 8000
4.3.4.7
Data table (DATA)
