2.MEASUREMENT CYCLE B-63874EN-1/02

- 98 -

2.2.4 Stylus Ball Center Offset Measurement-A

The offset between the center of the stylus ball and the center of the

spindle is measured.

NOTE

By using the spindle orientation function, the

machine tool builder needs to perform spindle

positioning at 0° or 180° based on a miscellaneous

function (M code).

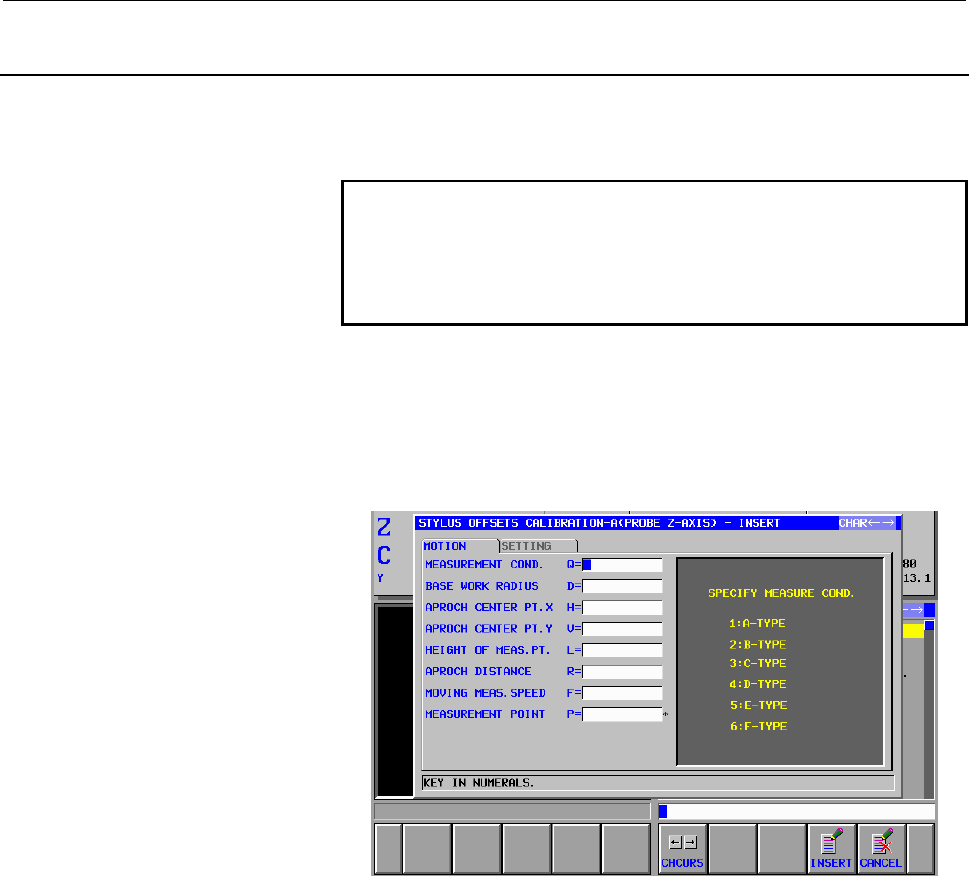

When you select "STYLUS OFFSETS CALIBRATION-A (PROBE

Z-AXIS)" on the calibration menu selection screen of the

measurement cycle, the screen below appears.

Make a measurement on the XY plane.

Measurement motion screen

- MEASUREMENT COND.

Specify a measurement condition group number to be referenced at

the time of measurement.

The result of measurement is set as calibration data of the group

number specified here.

Enter a numeric value.

- BASE WORK RADIUS

Enter the diameter of the reference workpiece.

Enter a numeric value.

- APROCH CENTER PT. X, Y

Enter the X and Y coordinates of a measurement start point.

Usually, enter the coordinates of the center of the reference

workpiece.

Enter numeric values.
