FANUC MANUAL GUIDE i

(Series16i/18i/21i-MB/TB)

OPERATOR’S MANUAL

B-63874EN-1/02-3

Page

FANUC LTD.

7.2. MEASUREMENT CYCLE

7.2.1 Measurement of Free Angle

On the measurements of circle, it is possible to measure by free angle.

3-point measurement is also measurable. Thus a center circle is measurable

though.

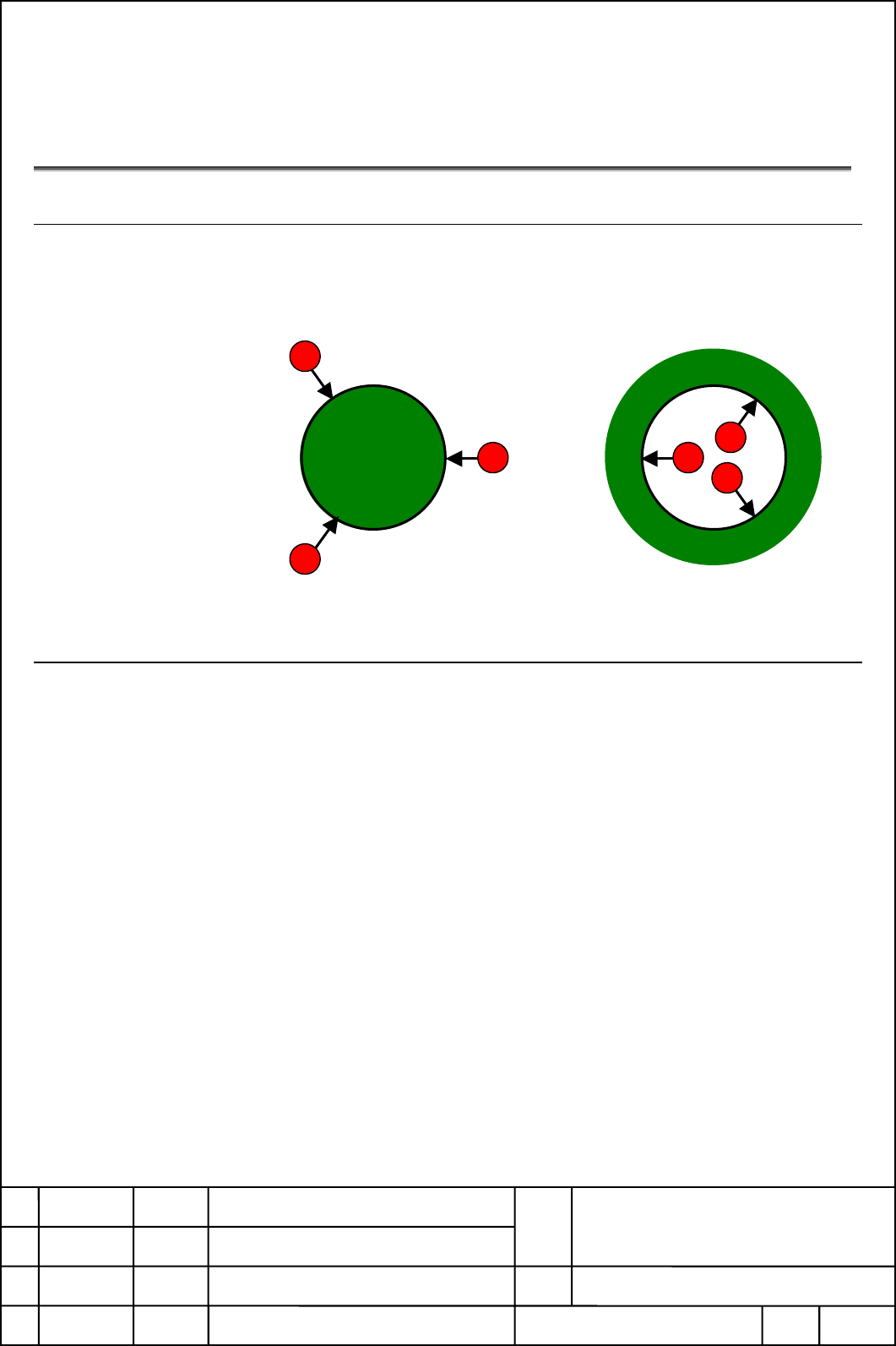

(Measurement of outside circle) (Measurement of inside circle)

7.2.1.1 Measurement Cycle

The following measurements are improved in CALIBRATION menu.

Stylus Ball Diameter Measurement (PROBE Z-AXIS DIRECTION)

Stylus Ball Center Offset Measurement-A (PROBE Z-AXIS

DIRECTION)

Stylus Ball Center Offset Measurement-B (PROBE Z-AXIS

DIRECTION)

Stylus Ball Diameter Measurement (PROBE X-AXIS DIRECTION)

Stylus Ball Center Offset Measurement-A (PROBE X-AXIS

DIRECTION)

Stylus Ball Center Offset Measurement-B (PROBE X-AXIS

DIRECTION)

The following measurements are improved in WORK SET menu.

Outside Diameter Measurement (PROBE Z-AXIS DIRECTION)

Inside Diameter Measurement (PROBE Z-AXIS DIRECTION)

Outside Diameter Measurement (PROBE X-AXIS DIRECTION)

Inside Diameter Measurement (PROBE X-AXIS DIRECTION)
