2.MEASUREMENT CYCLE B-63874EN-1/02

- 196 -

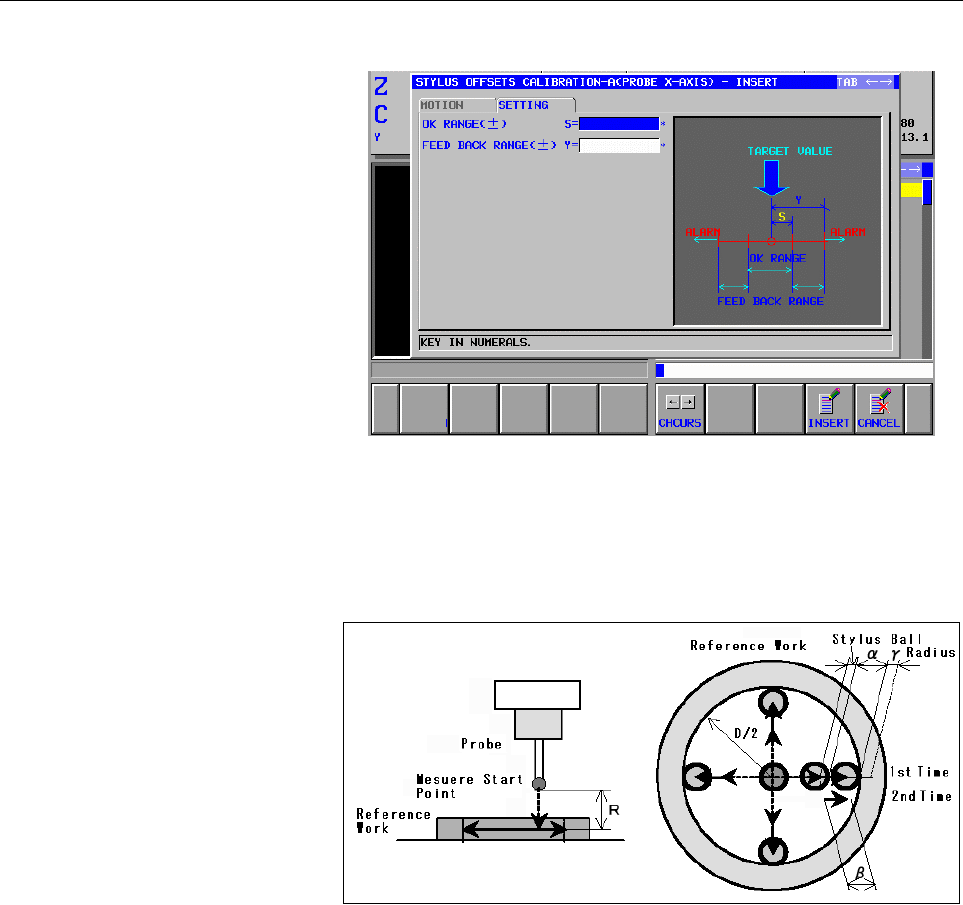

Setting screen

The displayed items are the same as for "Stylus Ball Center Offset

Measurement-A" of "CALIBRATION (PROBE Z-AXIS

DIRECTION)".

Measurement motion

Measurement motion is described below.

<1> The reference workpiece is placed on the table, then this

measurement cycle is executed.

<2> When this measurement cycle is executed, a rapid movement is

first made from the current position to the point specified by

("APROCH CENTER PT.Y" + ("BASE WORK RADIUS D"/2 -

α - stylus radius r)) in the Y-axis direction and by "APROCH

CENTER PT.Z" in the Z-axis direction.

<3> A rapid movement is made in the -X-axis direction to the point

("HEIGHT OF MEAS. PT." + "APROCH DISTANCE").

<4> A movement is made in the -X-axis direction to a point of

"HEIGHT OF MEAS. PT." at feedrate fb.

<5> After 0-degree spindle orientation is executed, a measurement is

made in the +Y-axis direction in the range (α + γ) at feedrate f.

(First measurement)

<6> Next, a rapid return movement is made by β, and a measurement

is made at the feedrate specified by "MOVING MEAS. SPEED"

in the range from that position to (β + γ). (Second measurement)
