B-63874EN-1/02 2.MEASUREMENT CYCLE

- 195 -

2.6.4 Stylus Ball Center Offset Measurement-A

The offset between the center of the stylus ball and the center of the

spindle is measured.

NOTE

By using the spindle orientation function, the

machine tool builder needs to perform spindle

positioning at 0° or 180° based on a miscellaneous

function (M code).

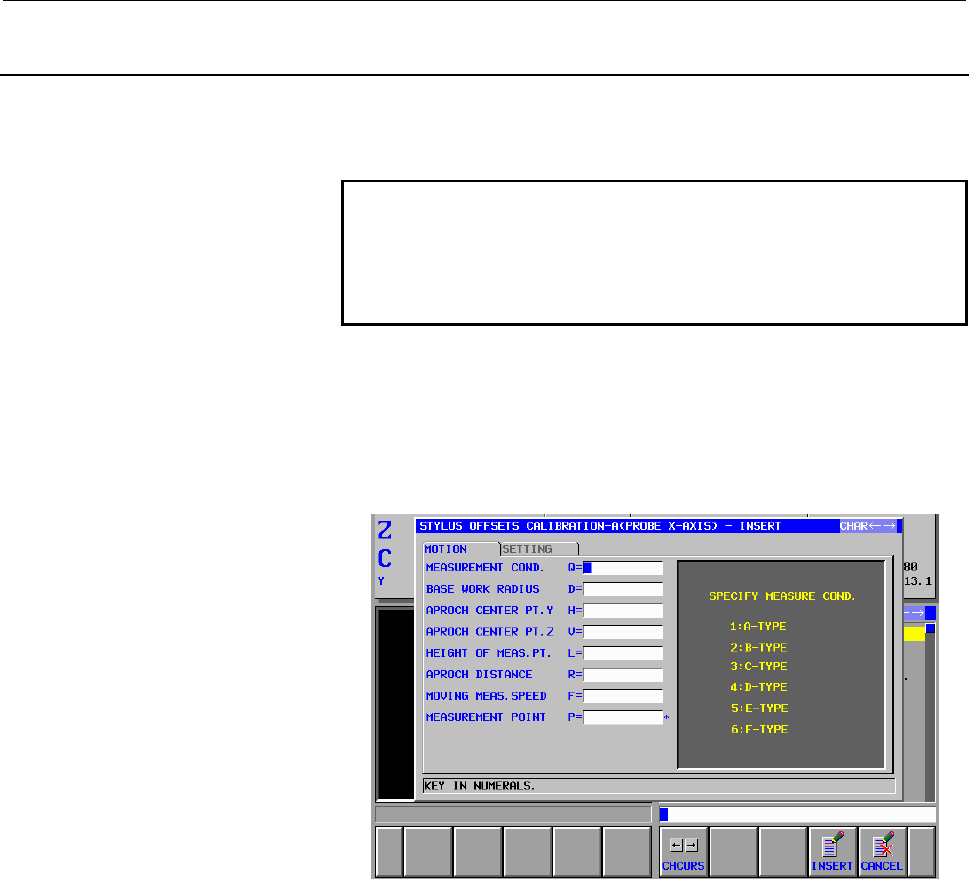

When you select "STYLUS OFFSETS CALIBRATION-A (PROBE

X-AXIS)" on the calibration menu selection screen of the

measurement cycle, the screen below appears.

A measurement is made on the YZ plane.

Measurement motion screen

- APROCH CENTER PT. Y, Z

Enter the Y and Z coordinates of a measurement start point.

Usually, enter the coordinates of the center of the reference

workpiece.

Enter numeric values.

- HEIGHT OF MEAS. PT.

Enter the height of a measurement point in the X-axis direction.

Enter a numeric value.

The descriptions of the other input items are the same as for "Stylus

Ball Center Offset Measurement-A" of "CALIBRATION (PROBE Z-

AXIS DIRECTION)".
