B-63874EN-1/02 2.MEASUREMENT CYCLE

- 173 -

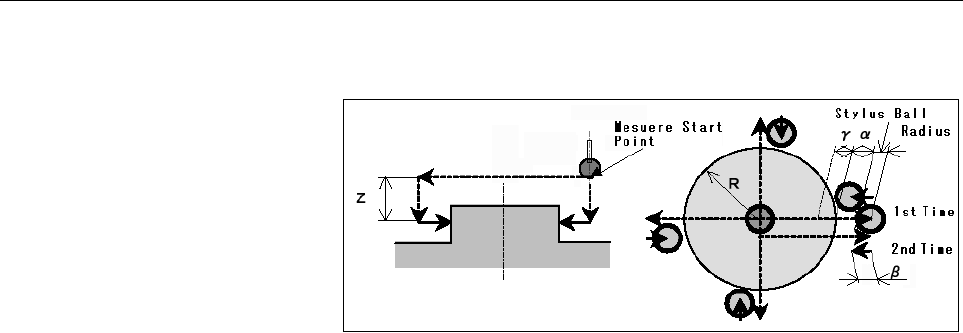

Measurement motion

Measurement motion is described below.

<1> A rapid movement is made from the current position to the point

specified by ("CENTER POINT X" + ("OUTSIDE

DIAMETER"/2 + α +r)) in the X-axis direction and by

"CENTER POINT Y" in the Y-axis direction.

<2> In the Z-axis direction, a rapid movement is made to the

approach point ("HEIGHT OF MEAS. PT." + "APROCH

DISTANCE").

<3> In the -Z-axis direction, a movement is made to the position

specified by "HEIGHT OF MEAS. PT." at feedrate fb.

<4> If "ON" is selected for "SPINDLE ORIENTATION", spindle

orientation is performed here.

<5> In the range of (α + γ), a measurement is made at feedrate f.

(First measurement)

<6> Next, a rapid return movement is made by ε, and a rapid return

movement is made in the Z-axis direction to the approach point

("HEIGHT OF MEAS. PT." + "APROCH DISTANCE").

<7> A rapid movement is made to "CENTER POINT X", then a

movement is made in the -X-axis direction by the distance

("OUTSIDE DIAMETER"/2 + α + r) at feedrate fa.

<8> A similar measurement is made in the -X-axis direction and ±Y-

axis directions.

<9> After of the first measurement, a center position for the second

measurement is calculated from the measurement result of each

point.

<10>In the +X-axis direction, a movement is made at feedrate fa to

the position (measurement position of the first measurement + β),

then a measurement is made at the feedrate specified by

"MOVING MEAS. SPEED" in the range from that position to (β

+ γ). (Second measurement)

<11>Next, a rapid return movement is made by ε, then a rapid return

movement is made in the Z-axis direction to the position before

the start of measurement.

<12>A rapid movement is made to the center X coordinate before the

start of measurement, then a similar measurement is made in the

-X-axis direction and ±Y-axis directions.

When bit 3 (SHRT) of parameter No. 12380 = 1

<1> A rapid movement is made from the current position to the point

specified by ("CENTER POINT X" + ("OUTSIDE
