Manual Guide i Operators manual Page 109

Operators manual

Page of 410

/ 410

B-63874EN-1/02 2.MEASUREMENT CYCLE

- 101 -

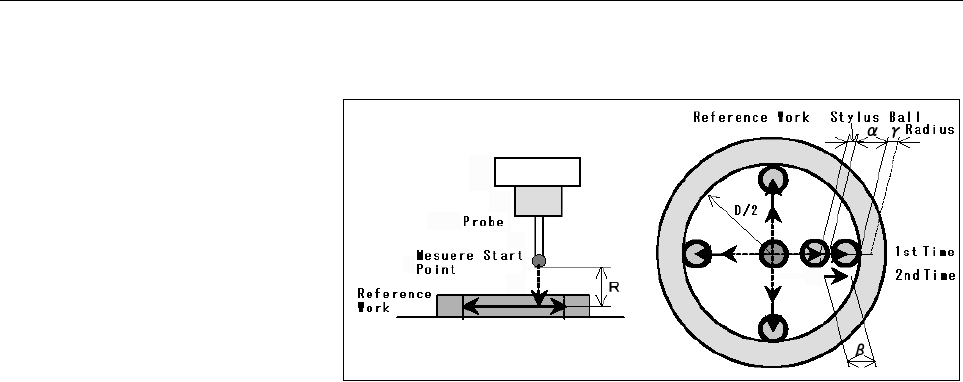

Measurement motion

Measurement motion is described below.

<1> The reference workpiece is placed on the table, then this

measurement cycle is executed.

<2> When this measurement cycle is executed, a rapid movement is

first made from the current position to the point specified by

("APROCH CENTER PT.X" + ("BASE WORK RADIUS D"/2 -

α - stylus radius r)) in the X-axis direction and by "APROCH

CENTER PT.Y" in the Y-axis direction.

<3> A rapid movement is made in the -Z-axis direction to the point

("HEIGHT OF MEAS. PT." + "APROCH DISTANCE").

<4> A movement is made in the -Z-axis direction to a point of

"HEIGHT OF MEAS. PT." at feedrate fb.

<5> After 0-degree spindle orientation is executed, a measurement is

made in the +X-axis direction in the range (α + γ) at feedrate f.

(First measurement)

<6> Next, a rapid return movement is made by β, and a measurement

is made at the feedrate specified by "MOVING MEAS. SPEED"

in the range from that position to (β + γ). (Second measurement)

<7> Next, a rapid return movement is made by β, and 180-degree

spindle orientation is executed, then a measurement is made at

the feedrate specified by "MOVING MEAS. SPEED" in the

range from that position to (β + γ). (Second measurement)

<8> After a rapid return movement is made by ε, a rapid movement is

made to the X coordinate specified by "APROCH CENTER

PT.X", then a movement is made at feedrate fa in the -X-axis

direction by the distance ("BASE WORK RADIUS D"/2 - α -

stylus radius r).

<9> A similar measurement is made in the -X-axis direction and ±Y-

axis directions.

<10>A return movement is made by "APROCH DISTANCE" in the

Z-axis direction.
