B-63874EN-1/02 2.MEASUREMENT CYCLE

- 111 -

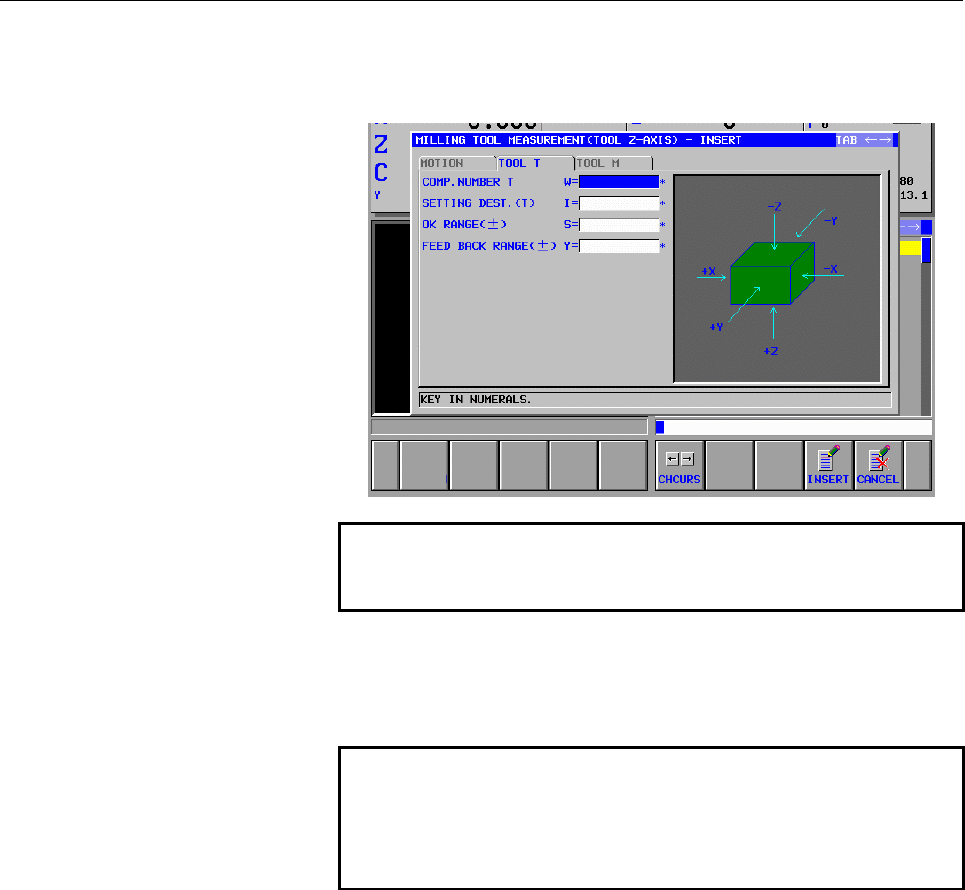

Input screen for automatic tool offset value setting (turning side)

This screen enables specification for setting a measured value as a

tool offset value on the turning side.

NOTE

With the CNC for a machining center, the "TOOL T"

screen is not displayed.

- COMP. NUMBER T

Enter a tool offset value number for setting the result of measurement.

Otherwise, the result of measurement is not set as a tool offset value.

Enter a numeric value.

NOTE

"32 tool compensation sets", "64 tool compensation

sets", "99 tool compensation sets", "400 tool

compensation sets", and "999 tool compensation

sets" are optional.
