B-63874EN-1/02 2.MEASUREMENT CYCLE

- 171 -

2.5.4 Outside Diameter Measurement

When the probe is oriented in the Z-axis direction, the outside

diameter and center position of a circle is measured.

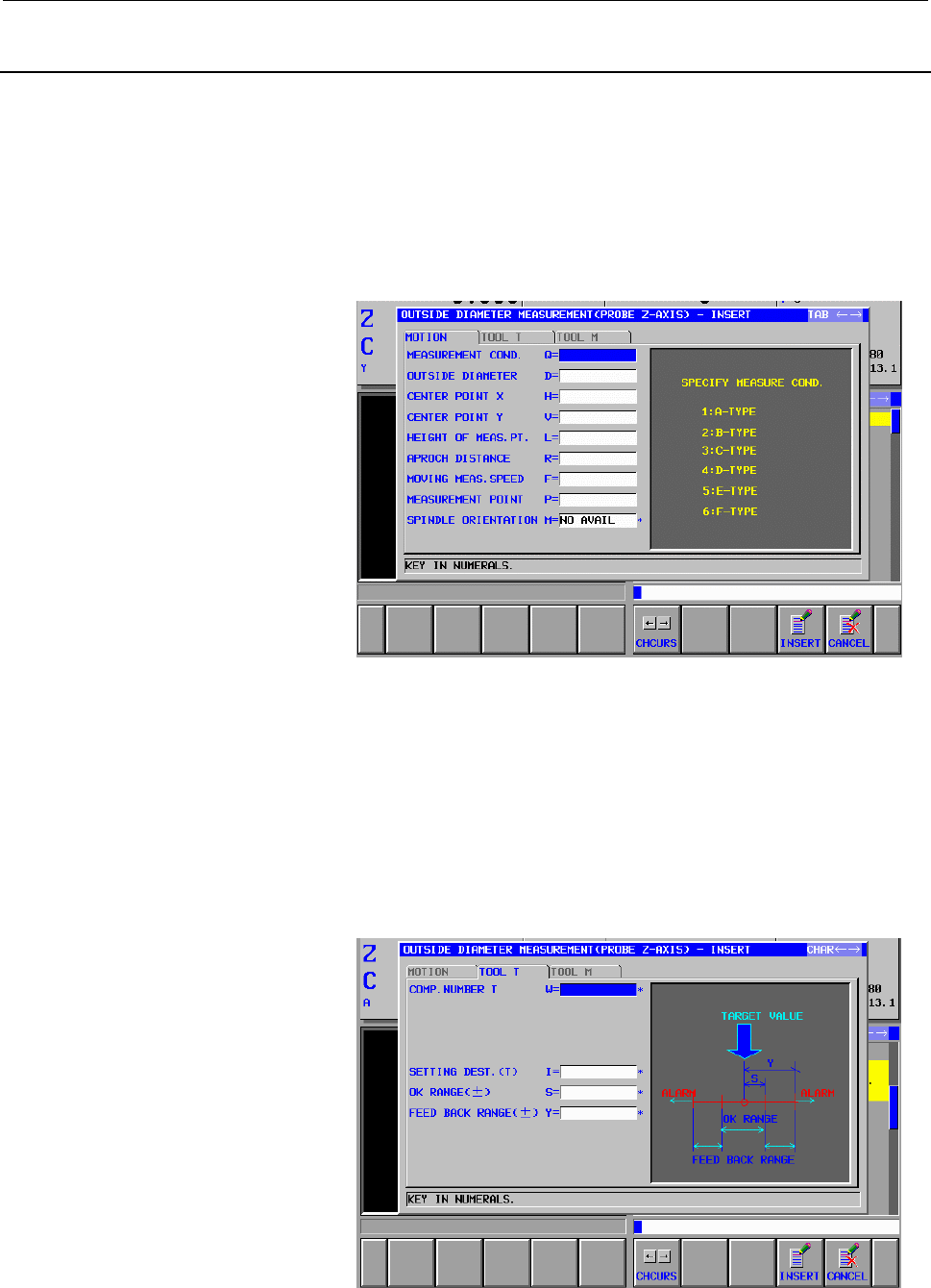

When you select "OUTSIDE DIAMETER MEASUREMENT

(PROBE Z-AXIS)" on the post-machining inspection menu selection

screen of the measurement cycle, the following screen appears:

Measurement motion screen

- MEASUREMENT POINT

Specify the number of measurement points.

Enter a numeric value.

The descriptions of the other items are the same as for "OUTSIDE

DIAMETER WORK SETUP (PROBE Z-AXIS)".

Input screen for automatic tool offset value setting (turning side)

This screen enables specification for setting a measured value as a

tool offset value on the turning side.
