Manual Guide i Operators manual Page 377

Operators manual

Page of 410

/ 410

Ed.

Date

Design

Description

Name

Draw.

FANUC MANUAL GUIDE i

(Series16i/18i/21i-MB/TB)

OPERATOR’S MANUAL

B-63874EN-1/02-3

Page

FANUC LTD.

NOTE

When a parameter CNR (No.27222#3) is set to ‘0’, or parameter

NOY (No.27222#7) is set to 1’, a measurement of outside and

inside corner is not displayed.

This parameter is in common with manual measurement /

automatic measurement.

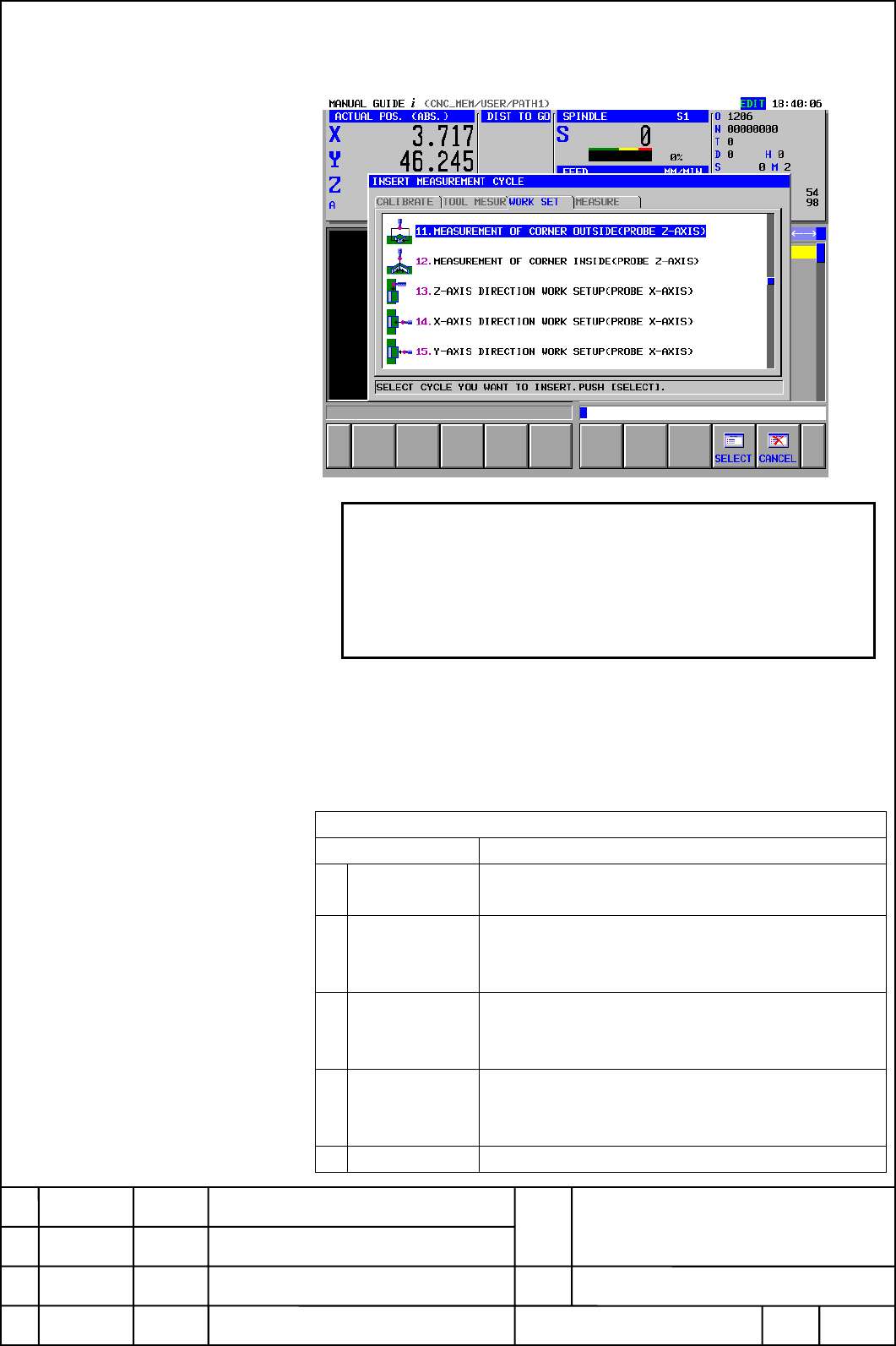

Select “measurement of outside corner (probe Z axis direction)” at setup

menu selection screen of measurement cycle.

page of measurement operation

Operating Measurement -1

Input Item Meanings

Q Measurement

Condition

Measurement Condition（Group number of setup

measurement condition）

H Starting Point

of 1

Measurement X

Coordination X of 1

Measurement point (start point)

V Starting Point

of 2nd

Measurement Y

Coordination Y of 1

Measurement point (start point)

X Starting Point

of 2nd

Measurement X

Coordination X of 2

Measurement point (start point)

Z Startin

Point Coordination Y of 2

Measurement point (start point)
