2.MEASUREMENT CYCLE B-63874EN-1/02

- 204 -

- Measurement of an offset value in the -X-axis direction (measurement of an offset

value in the tool length direction) - When a soft key other than [AUTO] is selected in

"SPECIFY OF X, Y, and Z SHIFT"

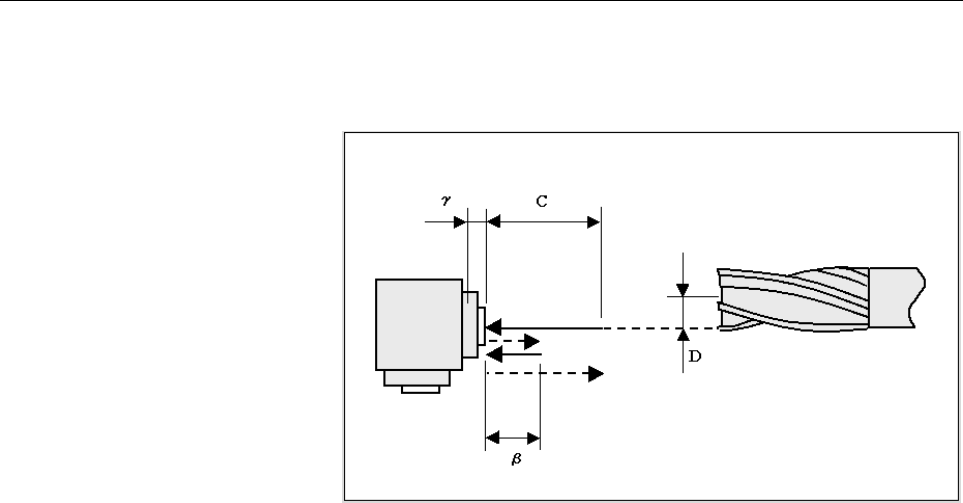

If the Z coordinate of the "sensor position for measurement in the -X

direction" of the touch sensor position is shifted from the Z

coordinate of the tool measurement position as shown below, specify

the shift amount in "SPECIFY OF Z SHIFT".

For example, the motion described below is made when [OFSET+] is

selected in "SPECIFY OF Z SHIFT". (It is assumed that [AUTO] is

selected for the X-axis direction and the Y-axis direction.)

<1> A rapid movement is made from the current position to the

approach point (Y coordinate, Z coordinate).

Here, the approach point (Y coordinate) represents Y coordinate

of the "sensor position for measurement in the -X direction" of

the touch sensor position in the specified measurement condition.

The approach point (Z coordinate) represents the (Z coordinate

of the "sensor position for measurement in the -X direction" of

the touch sensor position in the specified measurement condition

+ OFS

<2> In the -X-axis direction, a rapid movement is made to the

approach point (X coordinate).

Here, the approach point (X coordinate) represents (X coordinate

of the "sensor position for measurement in the -X direction" of

the touch sensor position in the specified measurement condition

+ "CLEARANCE" + OFS

<3> In the range from the approach point to ("CLEARANCE" + γ), a

measurement is made at feedrate f. (First measurement)

<4> Next, a rapid return movement is made by β, and a measurement

is made in the range from that position to (β + γ) at the specified

feedrate F. (Second measurement)

<5> Then, a rapid return movement is made by ε in the +X-axis

direction.
