2.5.6 Outside Width Measurement

When the probe is oriented in the Z-axis direction, the width of a

projection is measured.

Select "OUTSIDE WIDTH MEASUREMENT (PROBE Z-AXIS)" on

the post-machining inspection menu selection screen of the

measurement cycle.

Measurement motion screen

The displayed items are the same as for "OUTSIDE WIDTH WORK

SETUP (PROBE Z-AXIS)".

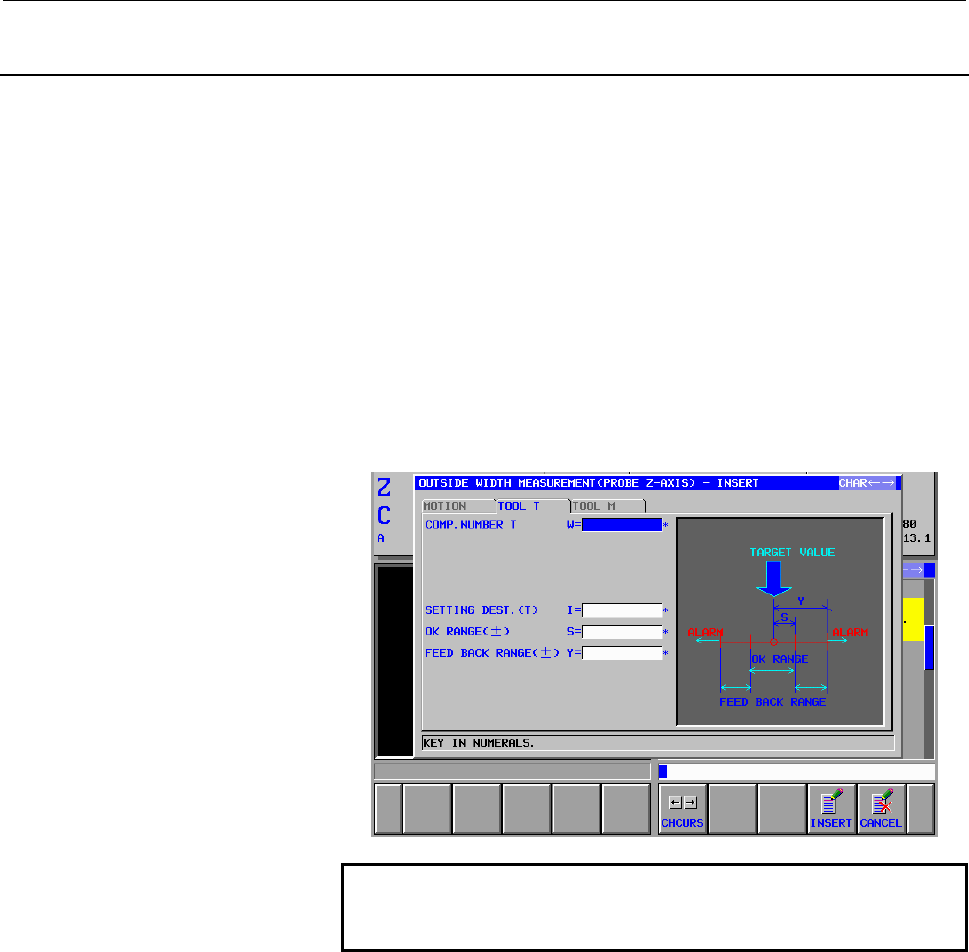

Input screen for automatic tool offset value setting (turning side)

This screen enables specification for setting a measured value as a

tool offset value on the turning side.

NOTE

With the CNC for a machining center, the "TOOL T"

screen is not displayed.

- OK RANGE (±)

Specify an allowable range of errors obtained from measurement.

If the difference between the obtained result of measurement and the

specified value (input value "PROJECTION WIDTH") is within this

allowable range, the absence of errors is assumed, and no setting is

performed as a tool offset value.

Enter a numeric value.
