2.MEASUREMENT CYCLE B-63874EN-1/02

- 152 -

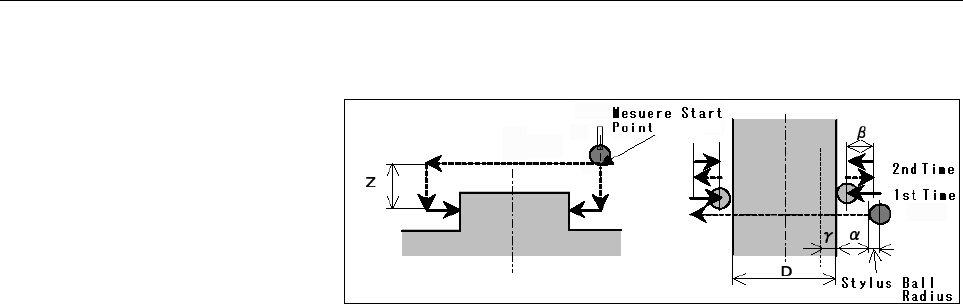

Measurement motion

Measurement motion is described below.

<1> For measurement in the X-axis direction, a rapid movement is

made from the current position to the point specified by

("CENTER POINT X" + ("PROJECTION WIDTH"/2 + α + r))

in the X-axis direction and by "CENTER POINT Y" in the Y-

axis direction. Similarly, for measurement in the Y-axis direction,

a rapid movement is made from the current position to the point

specified by "CENTER POINT X" in the X-axis direction and by

("CENTER POINT Y" + ("PROJECTION WIDTH"/2 + α + r))

in the Y-axis direction.

<2> In the Z-axis direction, a rapid movement is made to the

approach point ("HEIGHT OF MEAS. PT." + "APROCH

DISTANCE").

<3> A movement is made in the -Z-axis direction to the position

specified by "HEIGHT OF MEAS. PT." at feedrate fb, then a

measurement is made in the range from that position to (α + γ) at

feedrate f. (First measurement)

<4> Next, a rapid return movement is made by β, and a measurement

is made at the feedrate specified by "MOVING MEAS. SPEED"

in the range from that position to (β + γ). (Second measurement)

<5> Then, a rapid return movement is made by ε, and a rapid return

movement is made in the Z-axis direction to the approach point

("HEIGHT OF MEAS. PT." + "APROCH DISTANCE").

<6> A rapid movement is then made to the center coordinates. Next,

a movement is made to the approach point on the minus (-) side

at feedrate fa. Then, a similar measurement is also made in the -

X-axis (-Y-axis) direction.

The symbols used above have the following meanings:

fa: Value of "FEED-RATE FOR APPROACHING START POINT"

in the measurement condition of the group number specified in

"MEASUREMENT COND."

Rapid traverse rate when bit 2 (RPDF) of parameter No. 12380

is set to 1.

fb: Value of "FEED-RATE FOR APPROACHING START POINT"

in the axis direction in the measurement condition of the group

number specified in "MEASUREMENT COND."

f: Value of “FEED-RATE FOR 1ST MEASUREMENT" in the

measurement condition of the group number specified in

"MEASUREMENT COND."
