2.MEASUREMENT CYCLE B-63874EN-1/02

- 158 -

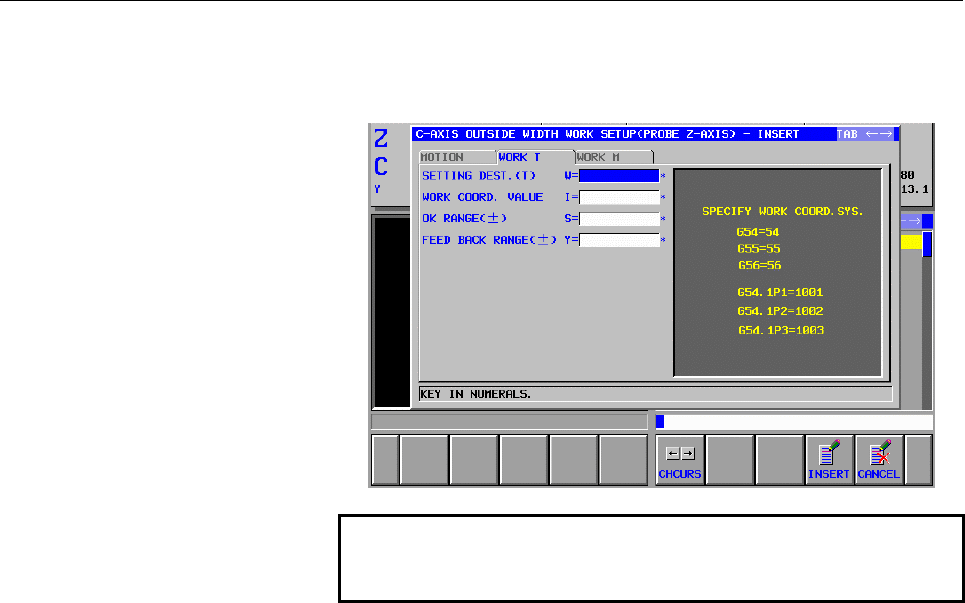

Input screen for automatic workpiece offset value set (turning side)

This screen enables specification for setting a measured value as a

workpiece origin offset value on the turning side.

NOTE

With the CNC for a machining center, the "WORK

T" screen is not displayed.

- OK RANGE (±)

Specify an allowable range of errors obtained from measurement.

If the difference between the center angle obtained from measurement

and the correct value (input value "CENTER ANGLE") is within this

allowable range, the absence of errors is assumed, and no setting is

performed as a workpiece origin offset value.

Enter a numeric value.

- FEED BACK RANGE (±)

If an error obtained from measurement is not within the OK range but

is within this feedback range, the measured value is set in the setting

destination.

If an error obtained from measurement exceeds the feedback range, an

alarm is issued.

Enter a numeric value.

The descriptions of the other input items are the same as for "X-AXIS

DIRECTION WORK SETUP (PROBE Z-AXIS)"

Processing when the OK range and the feedback range are 0

The same processing as for "X-AXIS DIRECTION WORK SETUP

(PROBE Z-AXIS)" is performed.
