1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 56 -

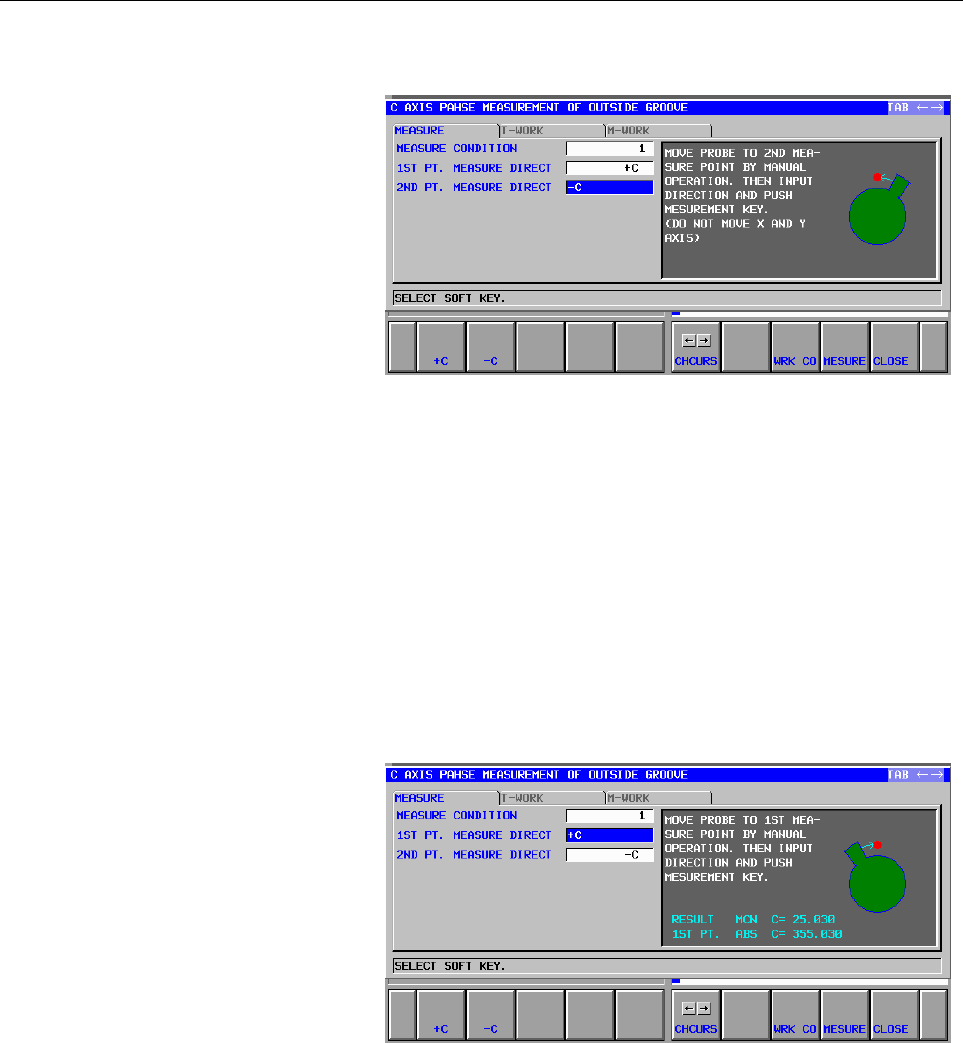

<6> Pressing the [↓] cursor key displays a guide chart for "2ND PT.

MEASURE DIRECT."

<7> Retract the probe in the Z-axis direction while keeping it

stationary with respect to the X- and Y-axes, and then rotate it

around the C-axis.

<8> By moving the probe manually, get it close to the second

measurement point so that measurement is possible with the

movement of the probe along the Z-axis in one direction, and

then make the same measurement as for the first measurement

point.

<9> After measurements, placing the cursor on a measurement point

displayed on the "MEASURE" screen re-displays the

measurement result on that point. Under this condition, pressing

the [MESURE] soft key triggers re-measurements on the point.
