B-63874EN-1/02 3.MEASUREMENT SETTING SCREENS

- 263 -

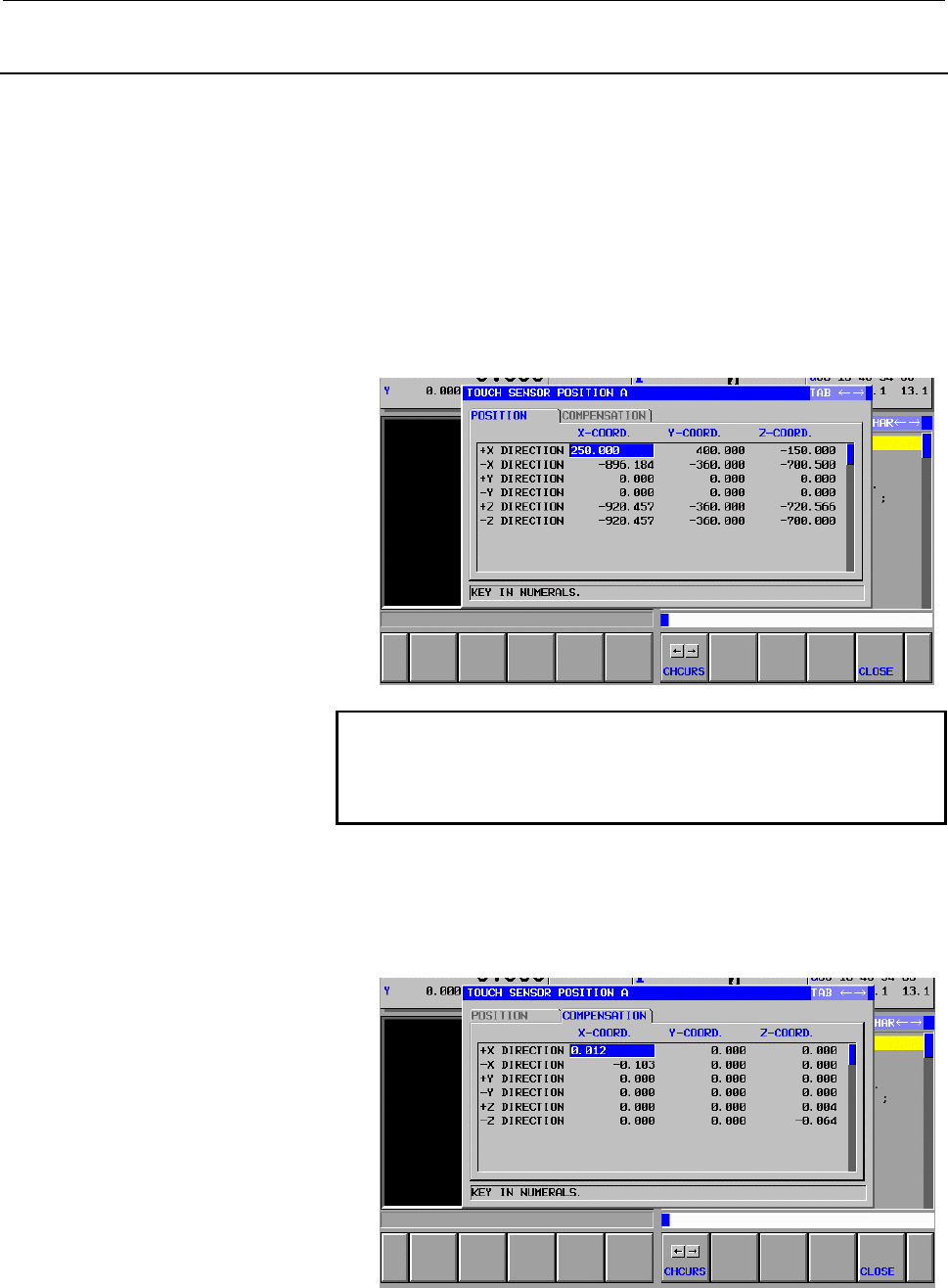

3.2.3 Referencing and Setting Touch Sensor Position Data

The following procedure lets you reference touch sensor position data.

The measurement result obtained in "TOUCH SENSOR POSITION

MEASUREMENT" is displayed.

The procedure lets you also set data on the screen.

The same data can be set on the touch sensor position setting screen

of each group.

<1> On the measurement condition entry screen select menu, place

the cursor on "TOUCH SENSOR POSITION A," and press [OK].

The following screen appears. The reference positions of the

touch sensors are displayed here.

NOTE

The item "+X DIRECTION" represents the position

of a sensor when measurements are made in the

+X direction.

<2> Press the [→] cursor key. The following screen appears. On this

screen, a compensation value for the reference position of each

touch sensor is displayed. The sum of this compensation value

and the coordinates of the the reference value is assumed to be

the actual touch sensor position.
