B-63874EN-1/02 3.MEASUREMENT SETTING SCREENS

- 257 -

3.1.3 Setting MEASURE CONDITION OF WORK SET/MEASURE

The following procedure lets you set measurement conditions related

to centering and post-machining inspection. The same data can be set

on the setting screen of each group.

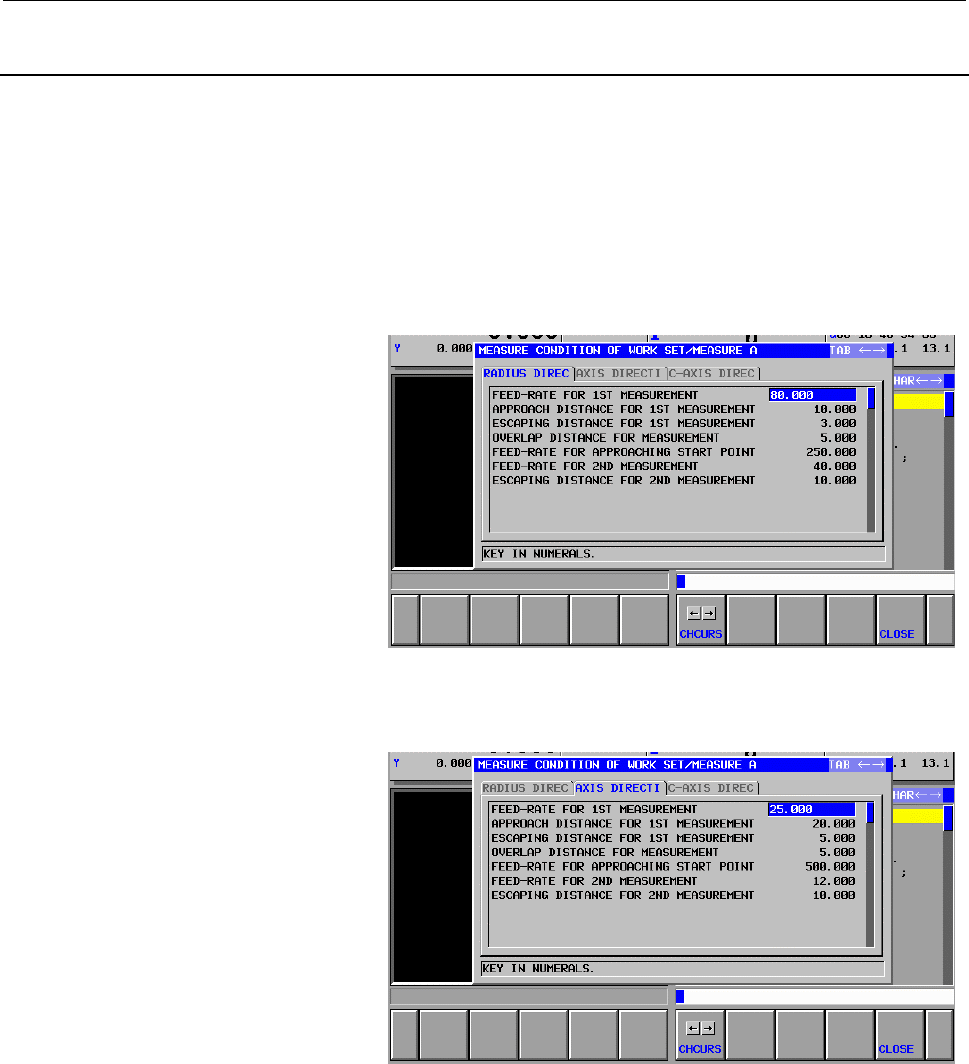

<1> On the measurement condition entry screen select menu, place

the cursor on "MEASURE CONDITION OF WORK

SET/MEASURE A," and press [OK]. The following screen

appears. This screen lets you set up conditions related to the

movement of a tool in its radius direction.

<2> Press the [→] cursor key on this screen. The following screen

appears. This screen lets you set up conditions related to the

movement of a tool in its axis direction.
