B-63874EN-1/02 3.MEASUREMENT SETTING SCREENS

- 269 -

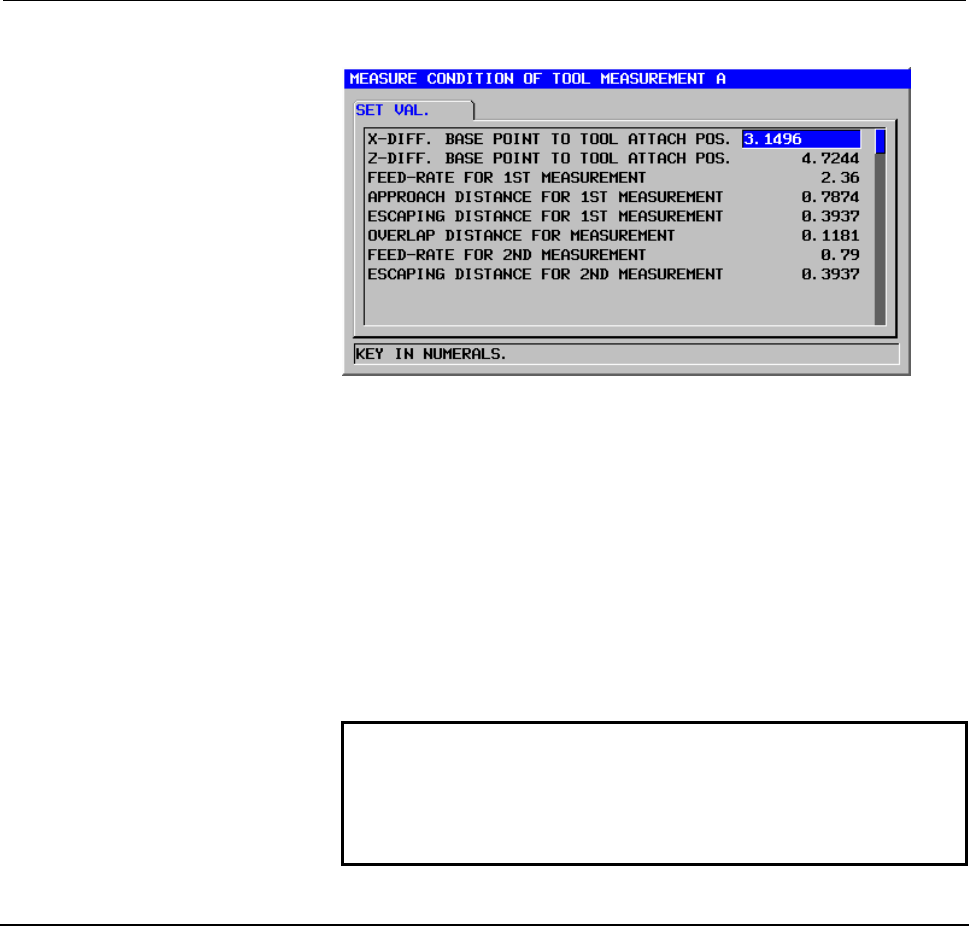

Screen display when inch input is set

The following data is not affected by the inch/metric input setting:

• Number of groups of measurement condition data for tool

measurement/calibration data

• Number of groups of measurement condition data for centering

and inspection after machining/calibration data

• Whether compensation values are available for calibration data

for tool measurement

• Number of customization items

• Compensation values for the settings of tool compensation

values for inspection after machining

• Measurement condition customization data

NOTE

Data in the C-axis (rotation axis) direction is not

affected by the inch/metric setting. However, the

decimal places of feedrate data are displayed

according to the inch/metric setting.

3.3.2 Data Input/Output

Measurement condition data and calibration data is output to the

memory card as described below.

Data output

Data is output as metric data.

Data input

Data is input as metric data.

Data input as inch data is also stored in macro variables as metric

data.
