Manual Guide i Operators manual Page 292

Operators manual
5.SUPPORTING TOOL MANAGEMENT B-63874EN-1/02
- 284 -

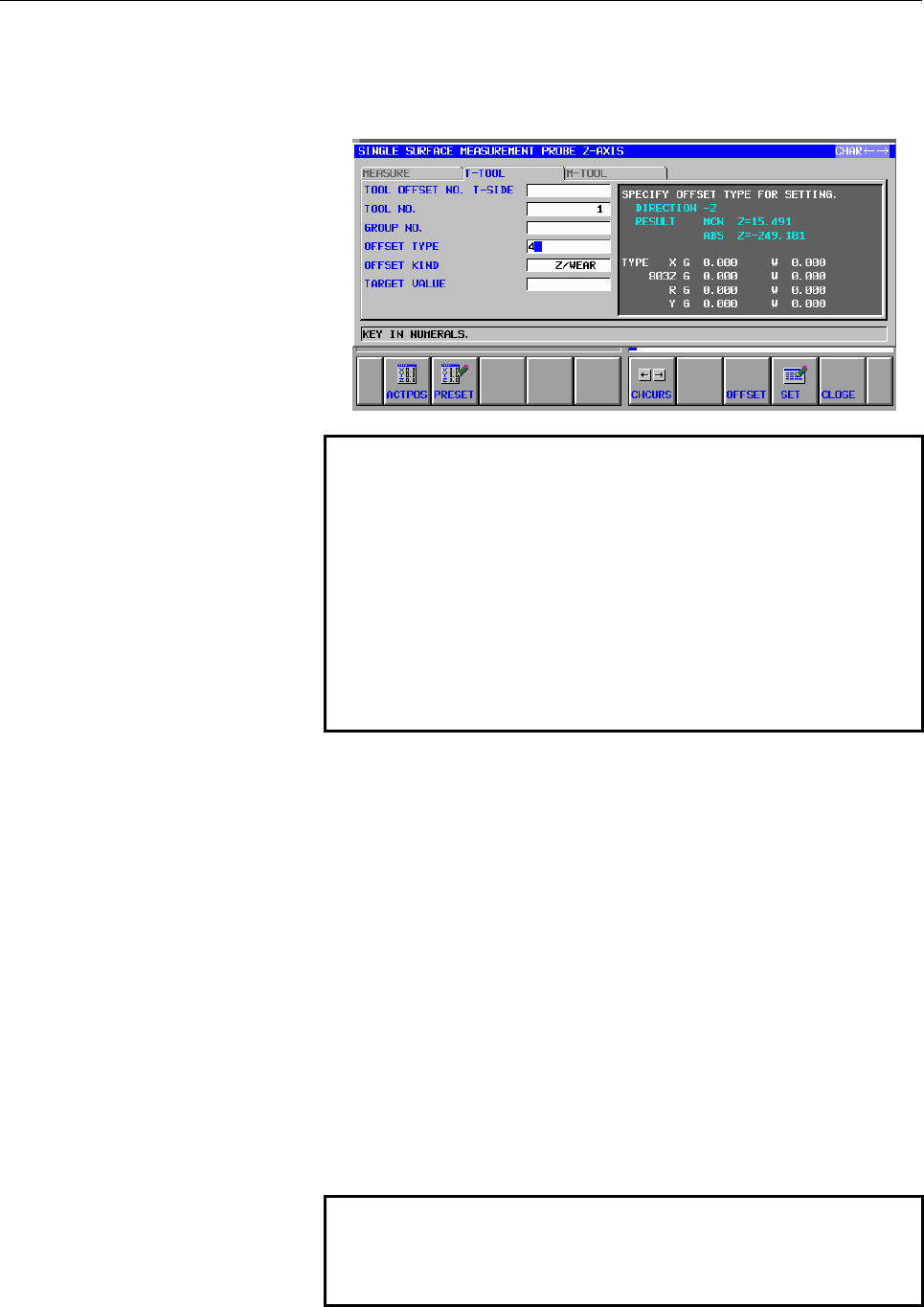

Entering "OFFSET TYPE" causes a tool offset number to be calculate
from the tool number and tool type or from the group number and
offset type, and displays the offset value for the obtained tool offset
number.
NOTE
1 If "OFFSET TYPE" is specified, either "TOOL NO."
or "GROUP NO." must be specified.
2 If "OFFSET NO." and "OFFSET TYPE" are
specified at the same time, the "OFFSET NO." data
rather than the "OFFSET TYPE" data is displayed.
3 If "OFFSET NO.," "GROUP NO.," and "OFFSET
TYPE" are specified at the same time, the offset
value data calculated from the "OFFSET TYPE"
corresponding to the "TOOL NO." rather than the
other type of data is displayed.
- TOOL OFFSET NO. T-SIDE
The function of this item is the same as when tool management is
disabled.
- TOOL NO.
This item lets you specify the tool number for a tool for which the
measured offset value is to be set.
- GROUP NO.
This item lets you specify the group number (tool type number) for a
tool for which the measured offset value is to be set.
- OFFSET TYPE
This item lets you specify the offset type for which the measured
offset value is to be set.
Data set range: 1 to the number of offset types specified in parameter
No. 14825
NOTE
None of "TOOL NO.," "GROUP NO., " and
"OFFSET TYPE" is displayed if the MSR parameter
(bit 2 of parameter No. 14823) is '0'.
