B-63874EN-1/02 2.MEASUREMENT CYCLE

- 189 -

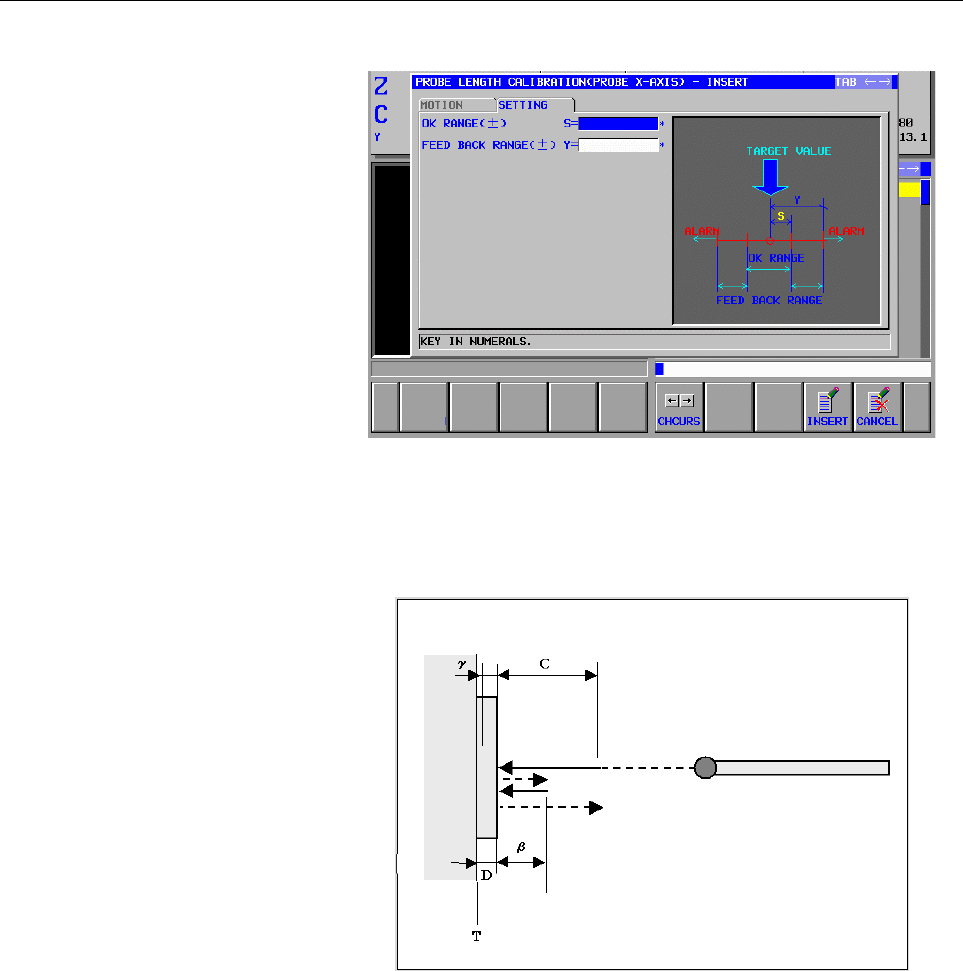

Setting screen

The displayed items are the same as for "Probe Length Measurement"

of "CALIBRATION (PROBE Z-AXIS DIRECTION)".

Measurement motion

Measurement motion is described below.

<1> A rapid movement is made from the current position to the point

specified by "MEASURE POINT Y" and "MEASURE POINT

Z".

<2> In the X-axis direction, a rapid movement is made to the

approach point (X coordinate).

Here, the approach point (X coordinate) represents (T + "REFER.

WORK HEIGHT" + "CLEARANCE").

<3> In the range from the approach point to ("CLEARANCE" + γ), a

measurement is made at feedrate f. (First measurement)

<4> Next, a rapid return movement is made by β, and a measurement

is made in the range from that position to (β + γ) at the feedrate

F specified by "MOVING MEAS.SPEED". (Second

measurement)

<5> Then, a rapid return movement is made by ε in the +X-axis

direction.
