7.5. Measurement of Sloped Groove / Protrude Width
It’s possible to measure Protrude and sloped groove width.
Responded for a measurement of conventional groove and protrude, and
subject to measure includes angle.

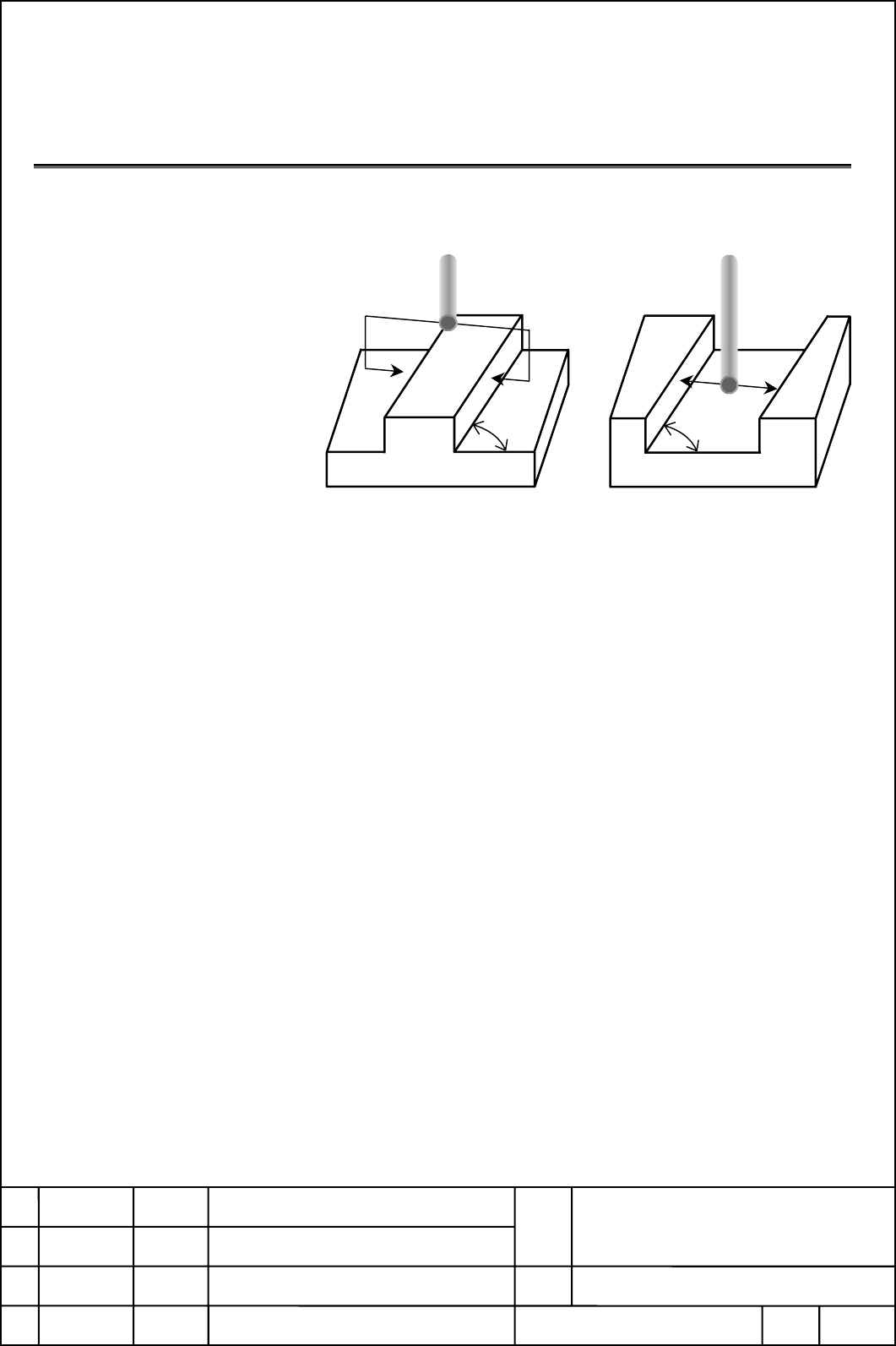

(Measurement of protrude width) (Measurement of sloped groove width)
Manual Measurement
・ Menu construction is the same as conventional version. When a
parameter No.27220#5 is set to “1”, angle can input at measurement
screen.
・ It is possible to measure to perpendicular direction for entered angle.
Measurement Menu subject
”Measurement of Outside Width” in post-machining inspection
“Measurement of Inside Width” in post-machining inspection
Measurement Cycle
・ Menu construction is the same as conventional version. When
parameter No.27220#5=1, angle can be enter at a measurement.
・ It is possible to measure to perpendicular direction for entered angle.
Measurement Menu subject
“Measurement of Outside Width (Tool Z axis direction)” in
post-machining inspection
“Measurement of Outside Width (Tool X axis direction)” post-machining
inspection
“Measurement of Inside Width (Tool Z axis direction)” post-machining
inspection
“Measurement of Inside Width (Tool X axis direction)” post-machining
inspection
