2.MEASUREMENT CYCLE B-63874EN-1/02

- 110 -

- SPECIFY OF X SHIFT

Select a method of specifying the shift amount from the X coordinate

of the touch sensor position for tool measurement to the X coordinate

of the tool measurement position.

By default, [AUTO] is selected.

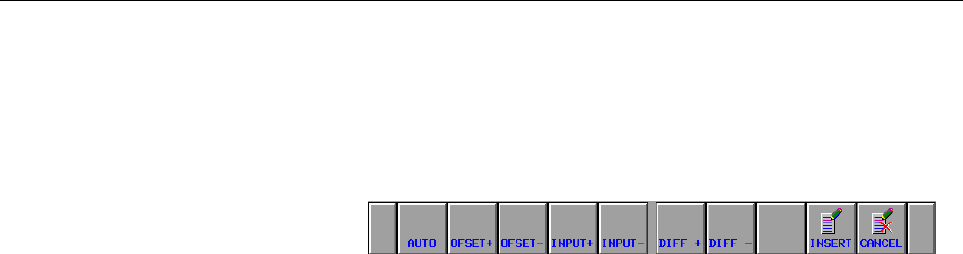

Choose from the soft keys.

When [AUTO] is selected, the approach position in the X-axis

direction at the time of tool measurement is automatically determined

by referencing the tool offset value. (For details, see "Measurement

motion" described later.)

When [OFSET+] or [OFSET-] is selected, the tool to be measured is

approached at the position shifted by the specified tool offset value

from the X coordinate of the touch sensor position. [OFSET+] makes

a shift in the + direction. [OFSET-] makes a shift in the - direction.

When [INPUT+] or [INPUT-] is selected, the tool is approached at

the position shifted by the value input in the next item

"OFFSET/DIFFERENCE X" from the X coordinate of the touch

sensor position.

When [DIFF+] or [DIFF-] is selected, the tool is approached at the

position shifted by the specified tool offset value added to the value

specified by the next item "OFFSET/DIFFERENCE X" from the X

coordinate of the touch sensor position.

- OFFSET/DIFFERENCE X

This item is displayed when [INPUT+], [INPUT-], [DIFF+], or

[DIFF-] is selected in "SPECIFY OF X SHIFT".

When [INPUT+] or [INPUT-] is selected, enter the shift amount from

the X coordinate of the touch sensor position for tool measurement to

the X coordinate of the tool measurement position.

When [DIFF+] or [DIFF-] is selected, enter a value so that the tool

offset value added to the value specified by this item is the shift

amount from the X coordinate of the touch sensor position for tool

measurement to the X coordinate of the tool measurement position.

- SPECIFY OF Y SHIFT, SPECIFY OF Z SHIFT

Same as "SPECIFY OF X SHIFT"

- OFFSET/DIFFERENCE Y, OFFSET/DIFFERENCE Z

Same as "OFFSET/DIFFERENCE X"
