Manual Guide i Operators manual Page 40

Operators manual

Page of 410

/ 410

1.MANUAL MEASUREMENT FUNCTIONS B-63874EN-1/02

- 32 -

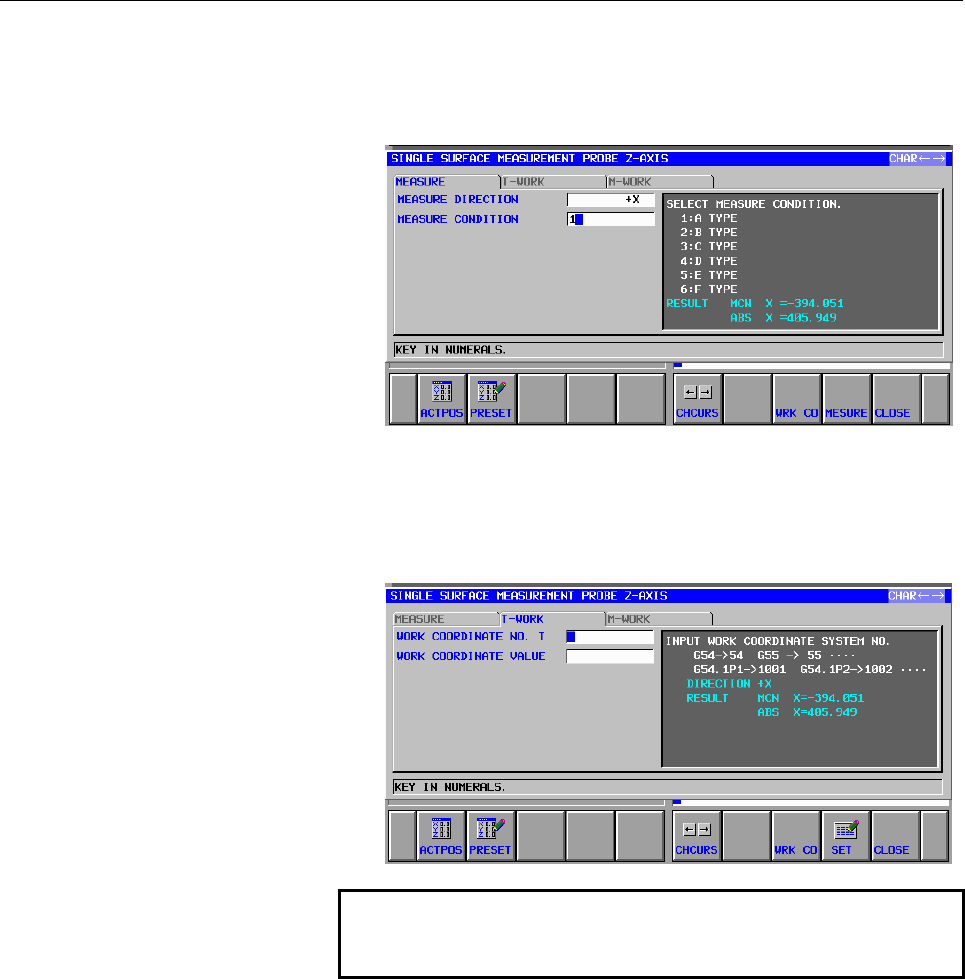

<6> After entering "MEASURE DIRECTION," press, the

[MESURE] soft key. The probe touches the measurement point

automatically, and the current position of the measurement point

is displayed as the measurement result.

<7> After making measurements, press the [→] cursor key. The "T-

WORK" screen appears.

If you want to set a milling tool workpiece origin offset number

as the item for which the offset value is to be set, select "M-

WORK."

NOTE

With the CNC for a machining center, the “T-

WORK” screen is not displayed.

<8> The measurement result appears on the screen. If you want to

make measurements only, quit the operation here.
