B-63874EN-1/02 2.MEASUREMENT CYCLE

- 129 -

2.4 WORK SET (PROBE Z-AXIS DIRECTION)

2.4.1 End Face (X-axis Direction) Measurement

The position of an end face in the X-axis direction is measured.

When you select "X-AXIS DIRECTION WORK SETUP (PROBE Z-

AXIS)" on the centering menu selection screen of the measurement

cycle, the following screen appears:

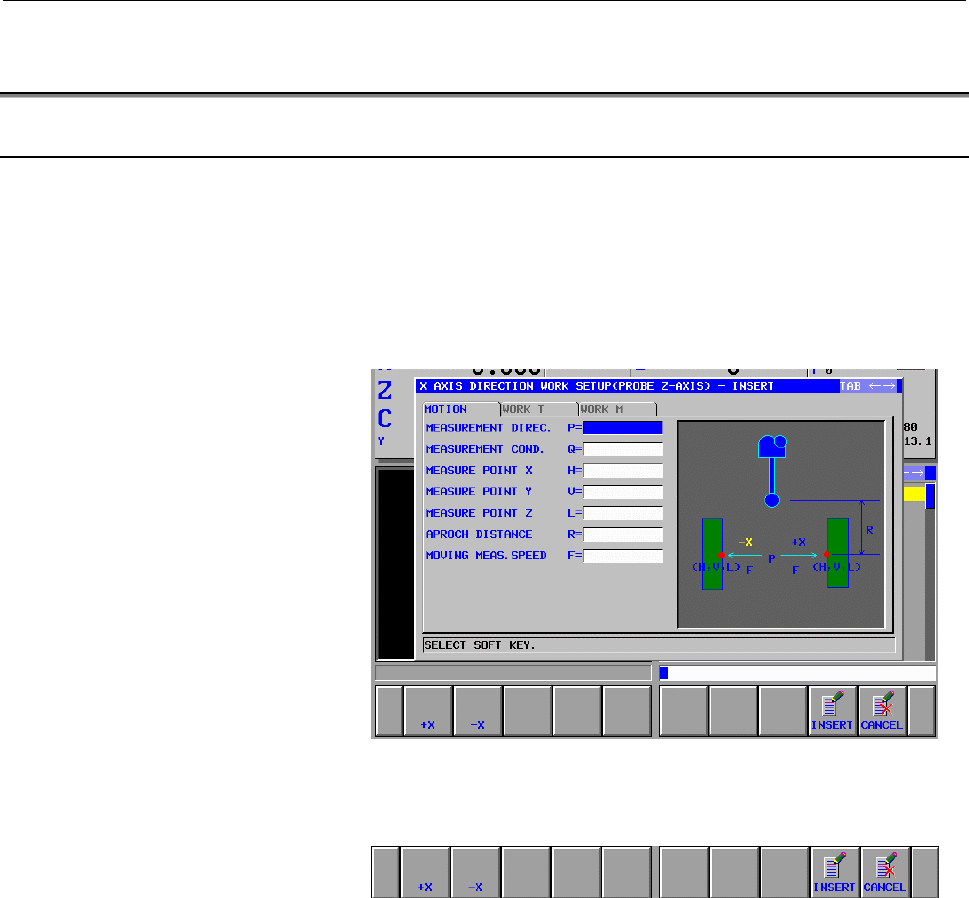

Measurement motion screen

- MEASUREMENT DIREC.

Specify an axis move direction for measurement.

Select a desired axis direction from the following soft keys:

- MEASUREMENT COND.

Specify a measurement condition group number to be referenced at

the time of measurement.

Enter a numeric value.

- MEASURE POINT X, Y, Z

Enter the correct workpiece coordinates of the end face.

Enter numeric values.

- APROCH DISTANCE

Specify the move distance from the approach point to the

measurement point in the Z-axis direction.

Enter a numeric value.

- MOVING MEAS. SPEED

Enter a feedrate for measurement.

Enter a numeric value.
