FANUC MANUAL GUIDE i

(Series16i/18i/21i-MB/TB)

OPERATOR’S MANUAL

B-63874EN-1/02-3

Page

FANUC LTD.

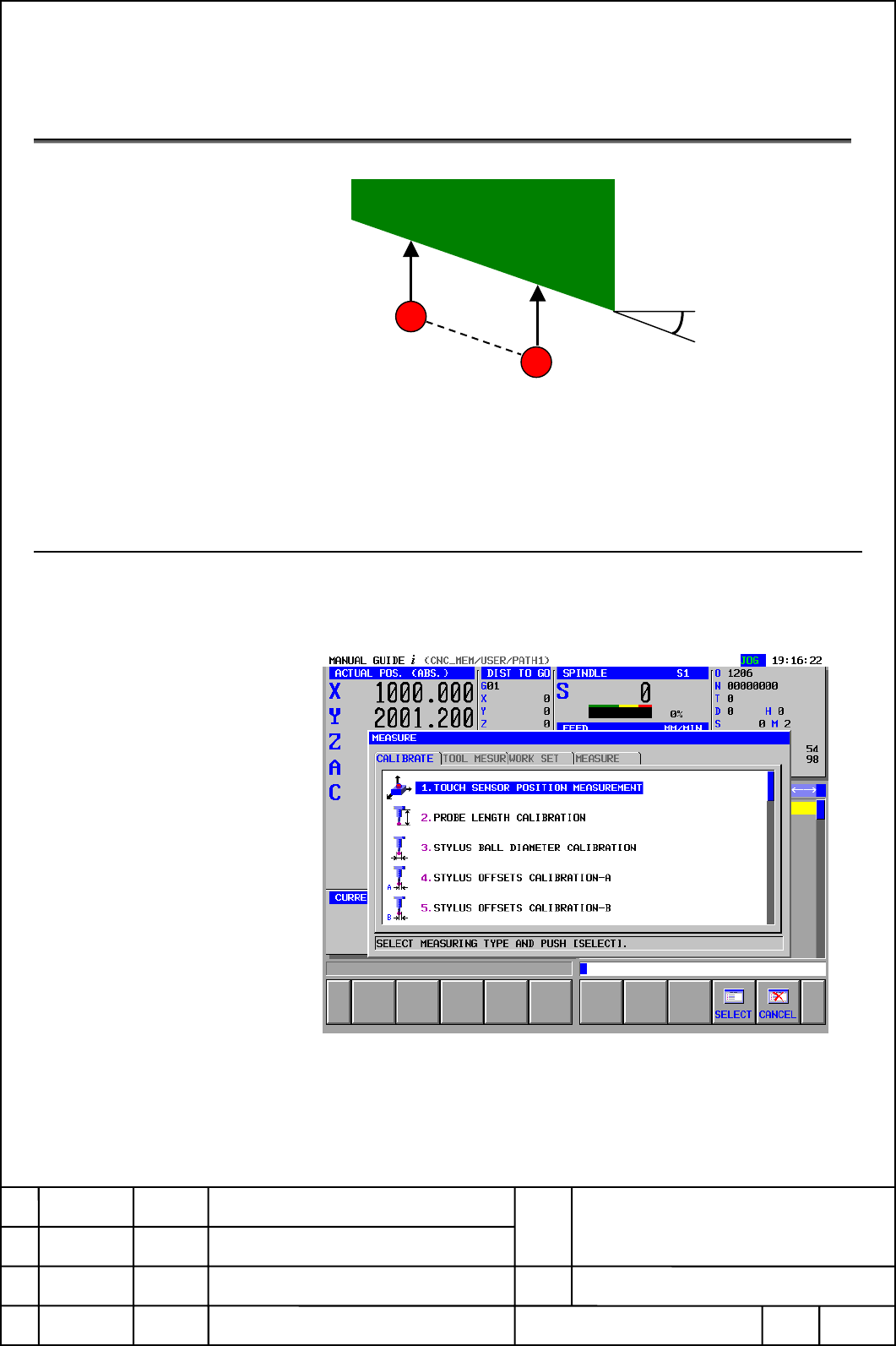

7.4. Measurement of Angled Work-piece

Operate a measurement of angled work-piece. It is possible to measure on

manual measurement and measurement cycle. A measured angle is output

to specified macro variable, and it is also possible to operate the coordinate

system rotation by these results.

7.4.1 Menu Selecting Screen of Manual Measurement

<1> Pressing a soft key [MESURE] on JOG, HND, TJOG, THND, REF, and

INC mode, a menu selection screen is displayed.

<2> With selecting “WORK SET” tab, “ANGLED WORK MEAUREMENT”

is displayed

ngle
