5.SUPPORTING TOOL MANAGEMENT B-63874EN-1/02

- 286 -

5.3 TOOL MEASUREMENT (AUTOMATIC MEASUREMENT)

When a workpiece measurement result is fed back to a toll offset

value, specifying either of the following items enables the

measurement result to be fed back. If an offset type is specified, the

offset value corresponding to the tool number of the tool placed at the

spindle position when a measurement is made is changed.

- Offset number

- Offset type

5.3.1 Selecting the TOOL MEASUREMENT Screen

<1> When the machine is in the edit mode, press the [MESCYC] soft

key.

<2> Select the "TOOL MEASUREMENT" tab.

<3> Select a tool measurement type.

5.3.2 Displays on the Screen

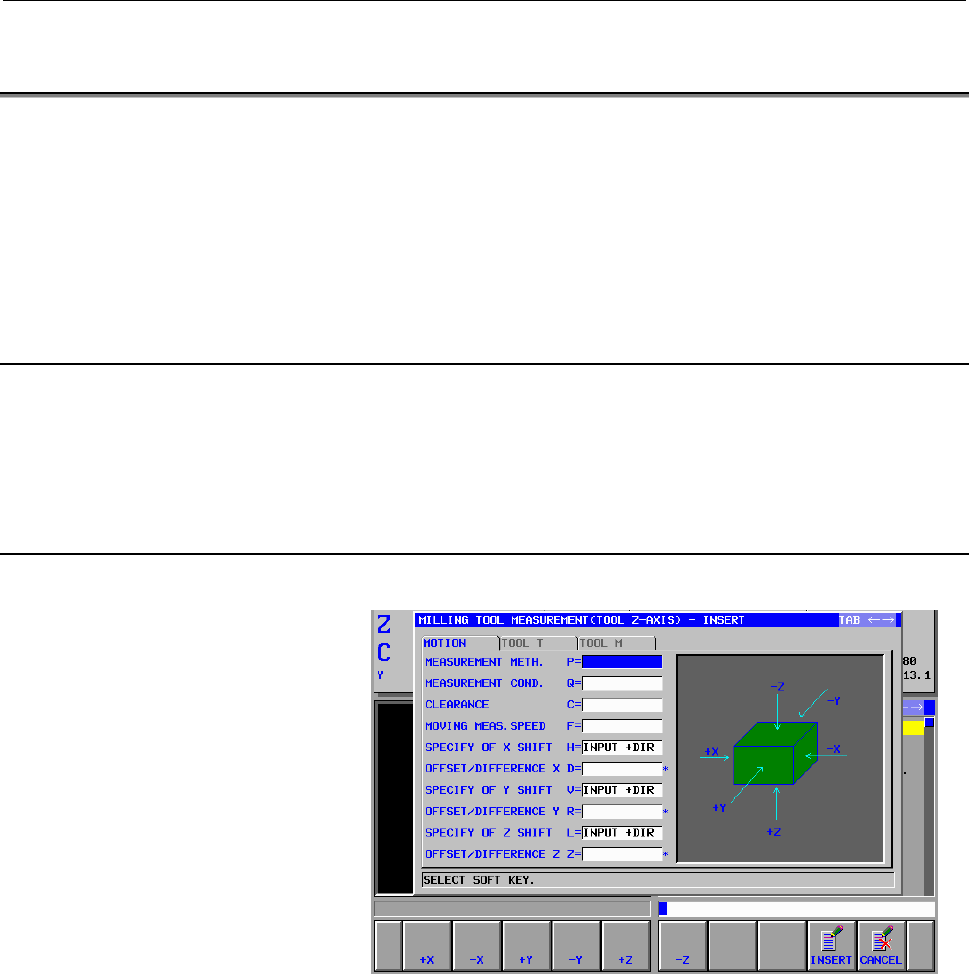

MOTION screen

The function of this screen is the same as when tool management is

disabled.
