B-63874EN-1/02 1.MANUAL MEASUREMENT FUNCTIONS

- 7 -

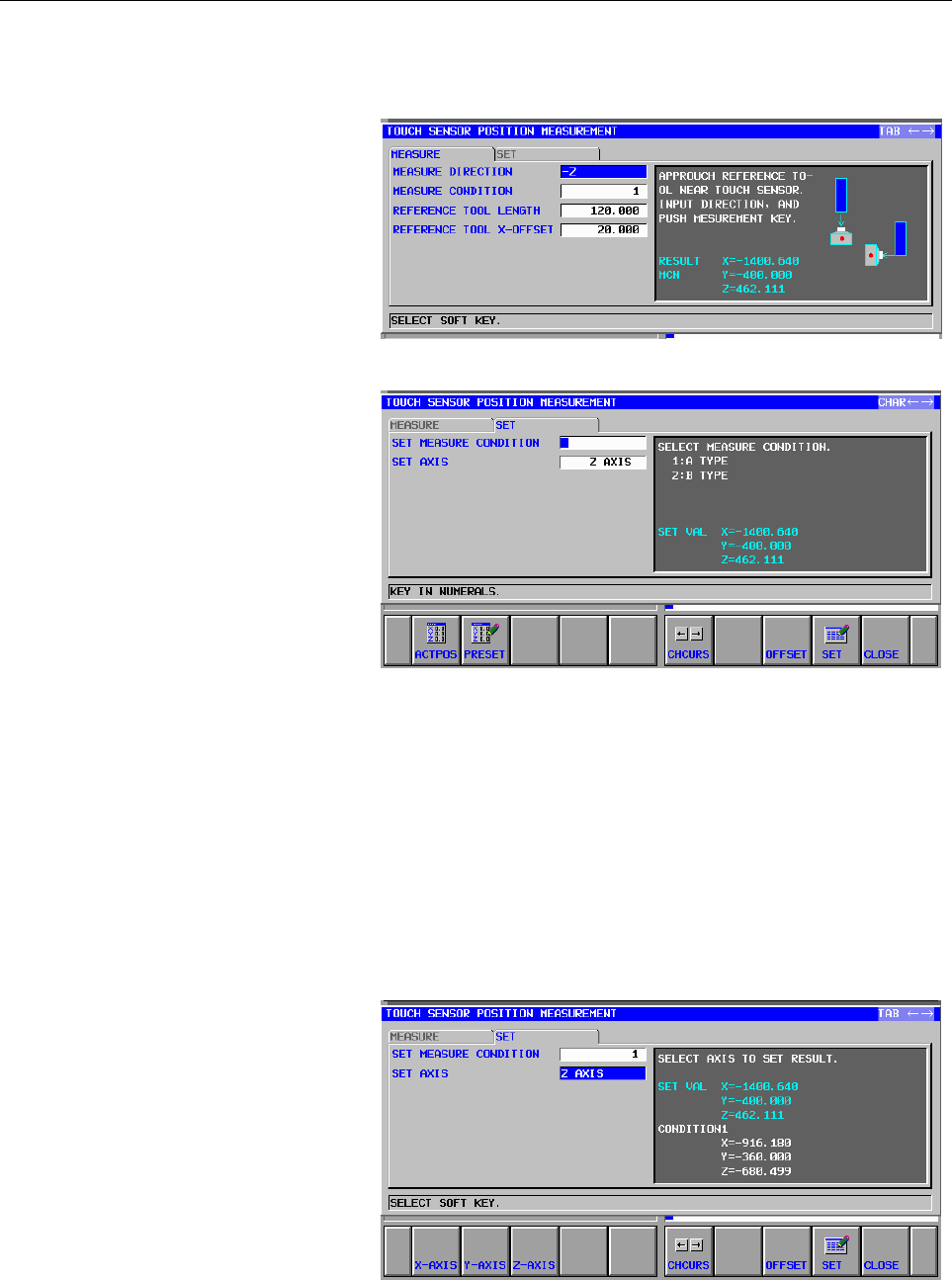

<6> Press the [MESURE] soft key. The probe touches the reference

workpiece automatically, and the current position of the

measurement point is displayed as the measurement result.

<7> Press the [→] cursor key. The "SET" screen appears.

<8> Specify a condition for which the measurement result is to be set

by selecting it from the two or more "MEASURE CONDITION"

items, using a number.

The number corresponding to the measurement condition

specified on the "MEASURE" tab is displayed by default.

This "MEASURE CONDITION" is referenced at tool

measurement.

<9> When the "MEASURE CONDITION" is selected for the item

for which the measurement result is to be set, the value set up as

the current touch sensor position for the measurement condition

is displayed.

<10>In "SET AXIS," select the coordinate axis for which the

measurement result is to be set from the soft keys.
