2.MEASUREMENT CYCLE B-63874EN-1/02

- 200 -

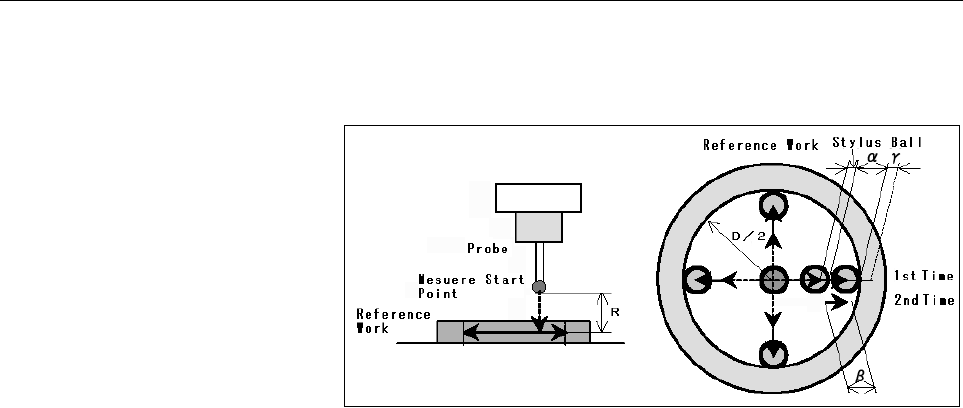

Measurement motion

Measurement motion is described below.

<1> The reference workpiece is placed on the table, then this

measurement cycle is executed.

<2> When this measurement cycle is executed, a rapid movement is

first made from the current position to the point specified by

("APROCH CENTER PT.Y" + ("BASE WORK RADIUS D"/2 -

α - stylus radius r)) in the Y-axis direction and by "APROCH

CENTER PT.Z" in the Z-axis direction.

<3> A rapid movement is made in the X-axis direction to the point

("HEIGHT OF MEAS. PT." + "APROCH DISTANCE").

<4> A movement is made in the -X-axis direction to a point of

"HEIGHT OF MEAS. PT." at feedrate fb.

<5> A measurement is made in the +Y-axis direction in the range (α

+ γ) at feedrate f. (First measurement)

<6> Next, a rapid return movement is made by β, and a measurement

is made at the feedrate specified by "MOVING MEAS. SPEED"

in the range from that position to (β + γ). (Second measurement)

<7> After a rapid return movement is made by ε, a rapid movement is

made to the Y coordinate specified by "APROCH CENTER

PT.Y", then a movement is made at feedrate fa in the -Y-axis

direction by the distance ("BASE WORK RADIUS D"/2 - α -

stylus radius r).

<8> A similar measurement is made in the -Y-axis direction and ±Z-

axis directions.

<9> A return movement is made by "APROCH DISTANCE" in the

X-axis direction.

The symbols used above have the following meanings:

fa: Value of "FEED-RATE FOR APPROACHING START POINT"

in the measurement condition of the group number specified in

"MEASUREMENT COND."

Rapid traverse rate when bit 2 (RPDF) of parameter No. 12380

is set to 1.

fb: Value of "FEED-RATE FOR APPROACHING START POINT"

in the axis direction in the measurement condition of the group

number specified in "MEASUREMENT COND."
