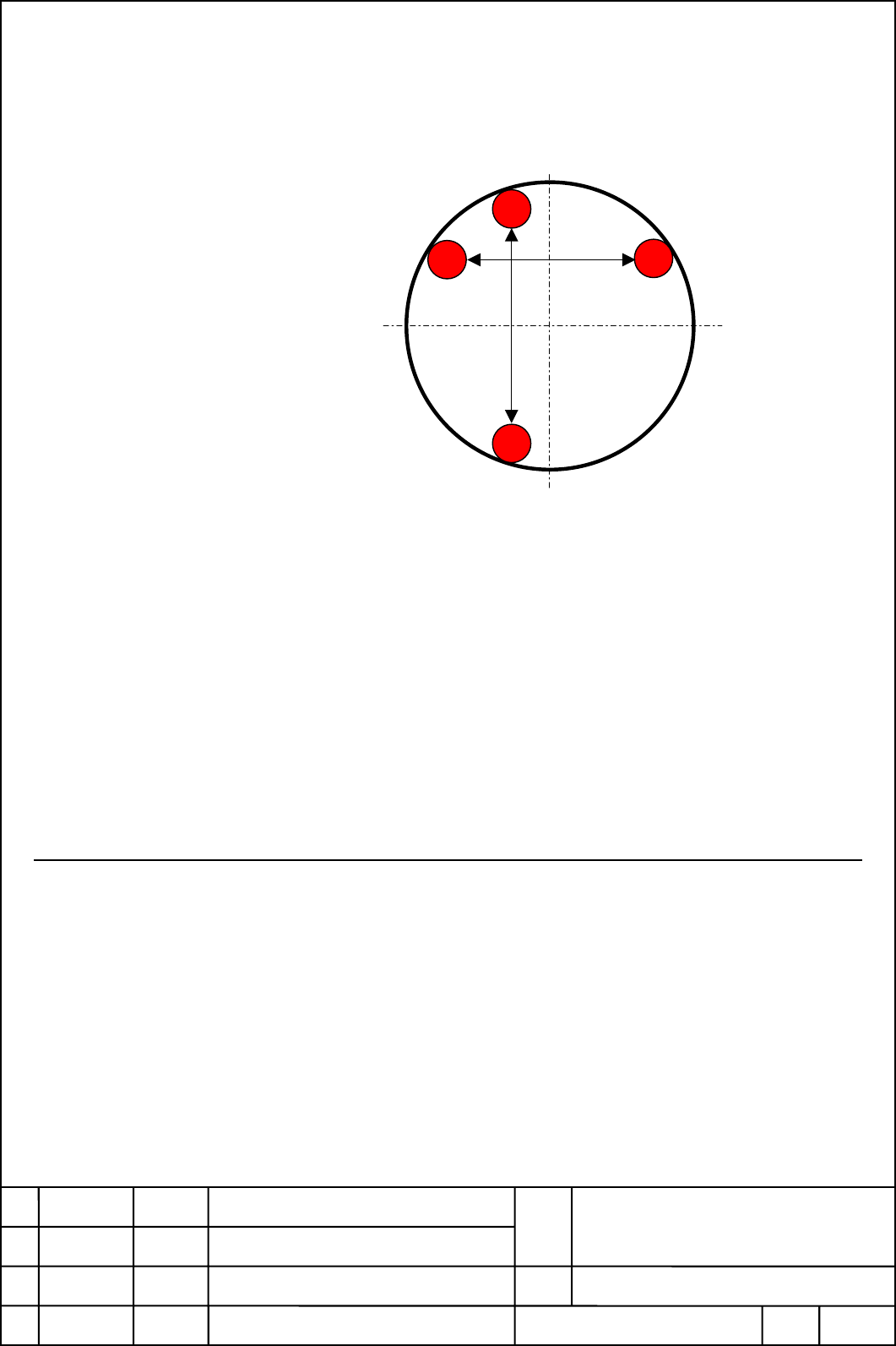

measurement is not on a centerline of a circle. It is improved by this

function.

Manual Measurement

The following measurements are improved.

STYLUS BALL DIAMETER CALIBRATION

STYLUS OFFSETS CALIBRATION-A

STYLUS OFFSETS CALIBRATION-B

OUTSIDE DIAMETER MEASUREMENT (MEASURE)

INSIDE DIAMETER MEASUREMENT (MEASURE)

Measurement motion

The measurement motions are same as before.

(This improvement is realized by the improvement of inside calculation

procedure.)

7.1.2.3 Measurement Plane Selection

On the manual measurement screen, when the parameter No.27226#4 is set

to 1, the measurement executes on the X-Y plane. Similarly, when the

parameter No.27226#5 is set to 1, the measurement executes on the Y-Z

plane.

If either of the above parameters is set to 1, the input item MEAURE

PLANE does not appear and the selected plane will be assumed as the only

measurement plane.
